TITAN's Go-To Insert!

• For universal applications in steels, stainless steel and cast iron.
• Works as pilot drill point for deep-hole applications.

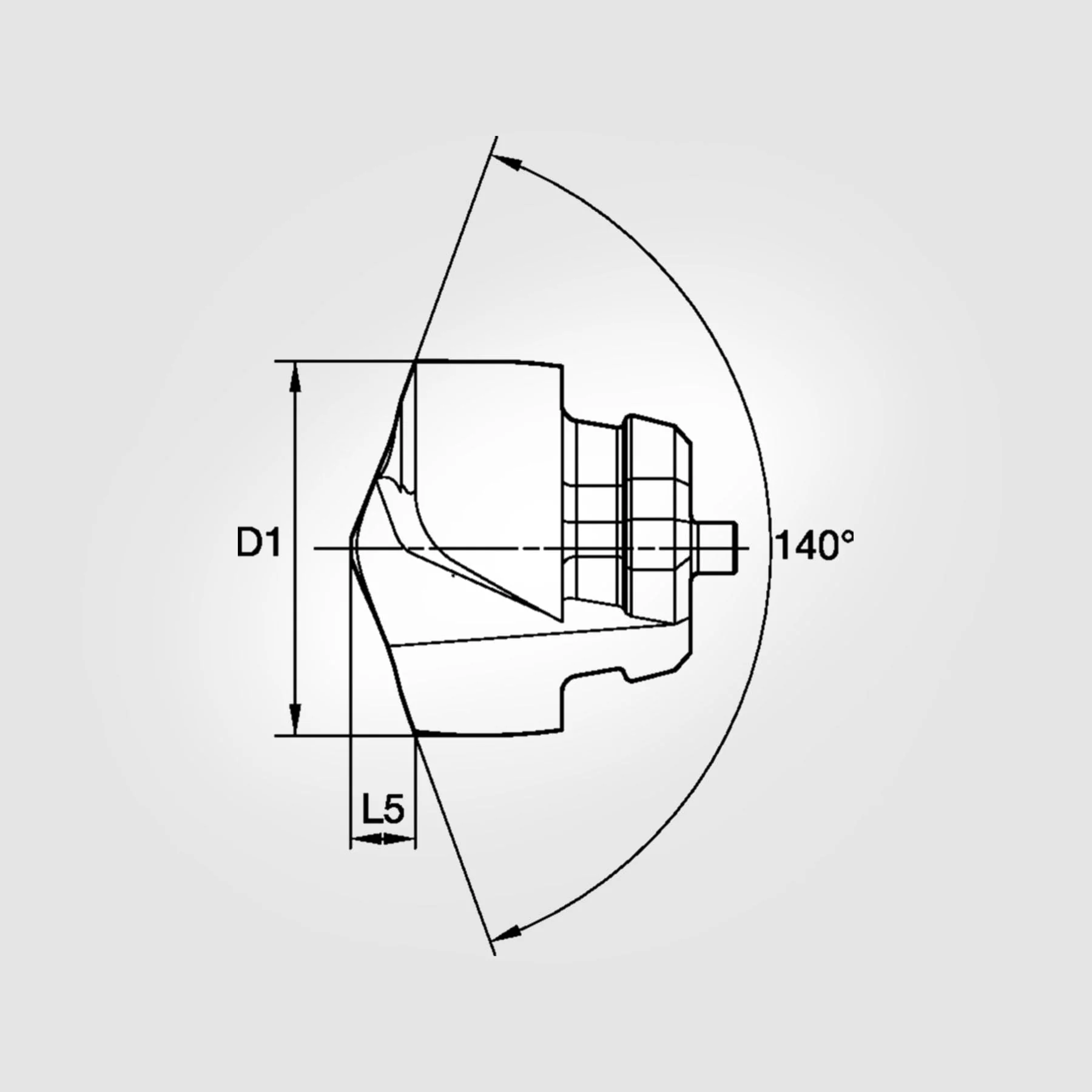

• GOdrill geometry with 140° point angle.
• Excellent centering capabilities and low axial forces.

Materials

• Primary: Stainless Steel, Steel
• Secondary: Cast Iron, High-Temp Alloys

Insert Data

• Quantity: 1
• Grade: KC7325
• Material Type: FERT
• Insert Size: Y
• Drill Diameter (Inch): 0.7874"
• Drill Diameter (Metric): 20.000mm
• Overall Length (Inch): 0.807"
• Overall Length (Metric): 20.500mm
• Drill Point Length (Inch): 0.129"
• Drill Point Length (Metric): 3.280mm

Country of Origin is subject to change.

Safety data sheets upon request.
