TITAN's Go-To Insert!

• For universal applications in steels, stainless steel and cast iron.
• Works as pilot drill point for deep-hole applications.

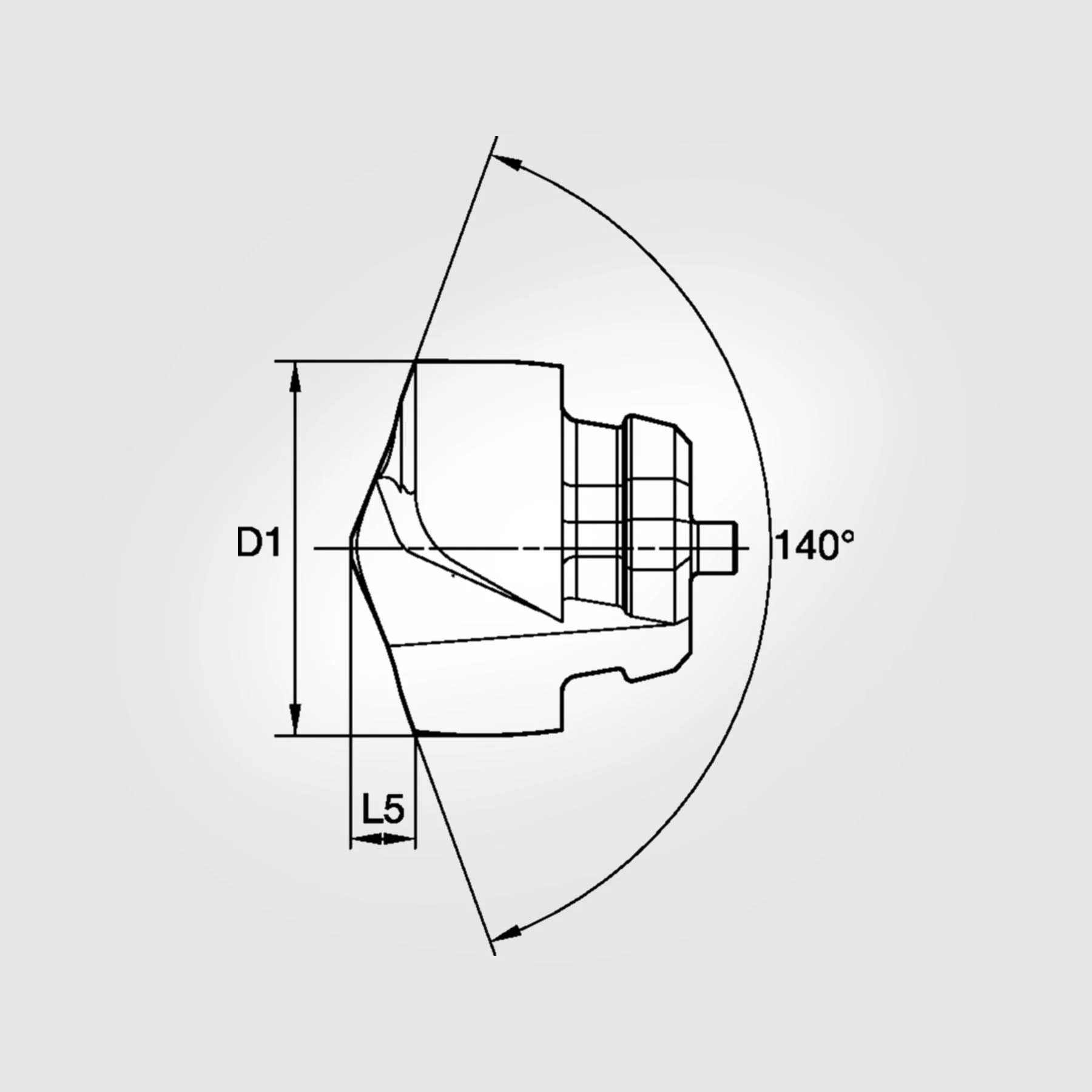

• GOdrill geometry with 140° point angle.
• Excellent centering capabilities and low axial forces.

Materials

• Primary: Stainless Steel, Steel
• Secondary: Cast Iron, High-Temp Alloys

Insert Data

• Quantity: 1
• Grade: KC7325
• Material Type: FERT
• Insert Size: F
• Drill Diameter (Inch): 0.3189"
• Drill Diameter (Metric): 8.100mm
• Overall Length (Inch): 0.331"
• Overall Length (Metric): 8.400mm
• Drill Point Length (Inch): 0.051"
• Drill Point Length (Metric): 1.290mm

Country of Origin is subject to change.

Safety data sheets upon request.
