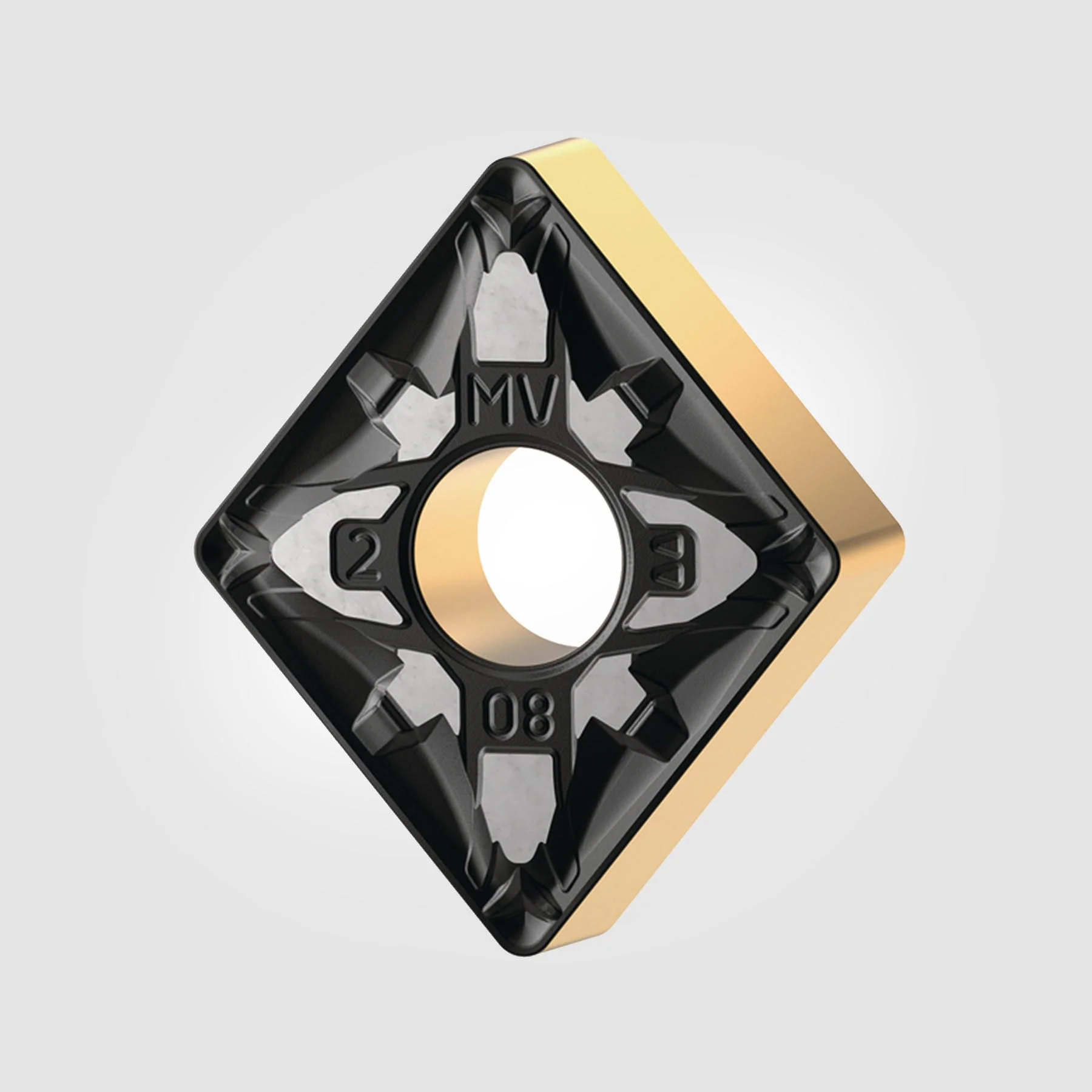

The GOLD Standard in Turning Inserts!

• For applications in steels and cast iron.
• Roughing geometry with stronger edge line for demanding applications.
• Beyond™ Drive™ grades included.

Materials

• Primary: Steel
• Secondary: Cast Iron

Insert Data

• Quantity: 5
• Grade: KCP25C
• Material Type: FERT
• Catalog: CNMG544
• Chip Breaker: MV
• Tool Family: Kenloc™

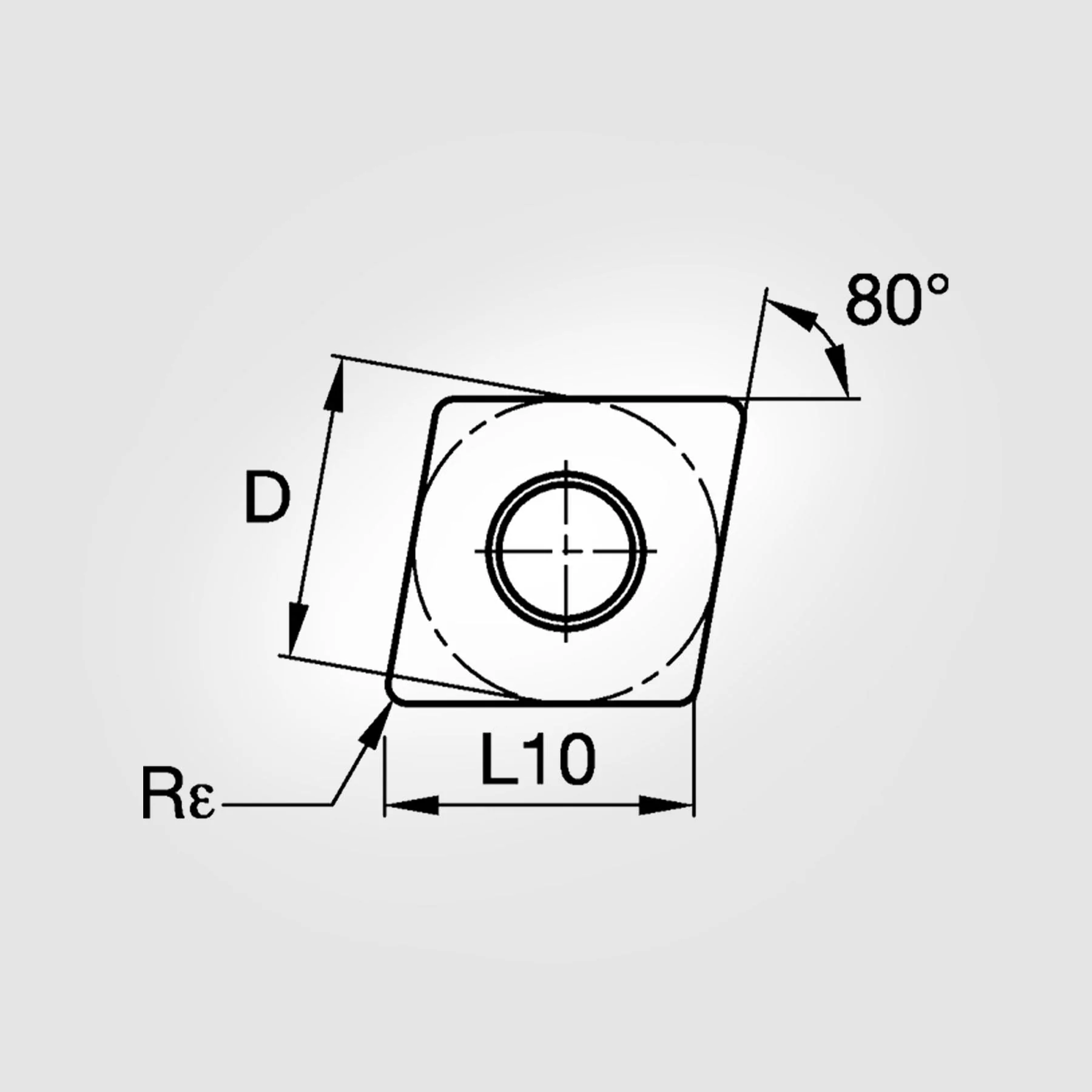

• Insert Shape: Diamond/Rhombic 80
• [D] Insert Size (Fraction): 5/8"
• [D] Insert Size (Inch): 0.625"
• [D] Insert Size (Metric): 15.875mm
• [D1] Insert Hole Size (Inch): 0.250"
• [D1] Insert Hole Size (Metric): 6.350mm
• [L10] Cutting Edge Length (Inch): 0.635"
• [L10] Cutting Edge Length (Metric): 16.120mm
• [S] Insert Thickness (Fraction): 1/4"
• [S] Insert Thickness (Inch): 0.250"
• [S] Insert Thickness (Metric): 6.350mm
• [Rε] Corner Radius (Fraction): 1/16"
• [Rε] Corner Radius (Inch): 0.063"
• [Rε] Corner Radius (Metric): 1.600mm

Country of Origin is subject to change.

Safety data sheets upon request.
