The GOLD Standard in Turning Inserts!

• For applications in steels and cast iron.
• Roughing geometry with stronger edge line for demanding applications.
• Beyond™ Drive™ grades included.

Materials

• Primary: Steel
• Secondary: Cast Iron

Insert Data

• Quantity: 5
• Grade: KCP25C
• Material Type: FERT
• Catalog: TCMT3251
• Chip Breaker: FP
• Tool Family: Screw-On

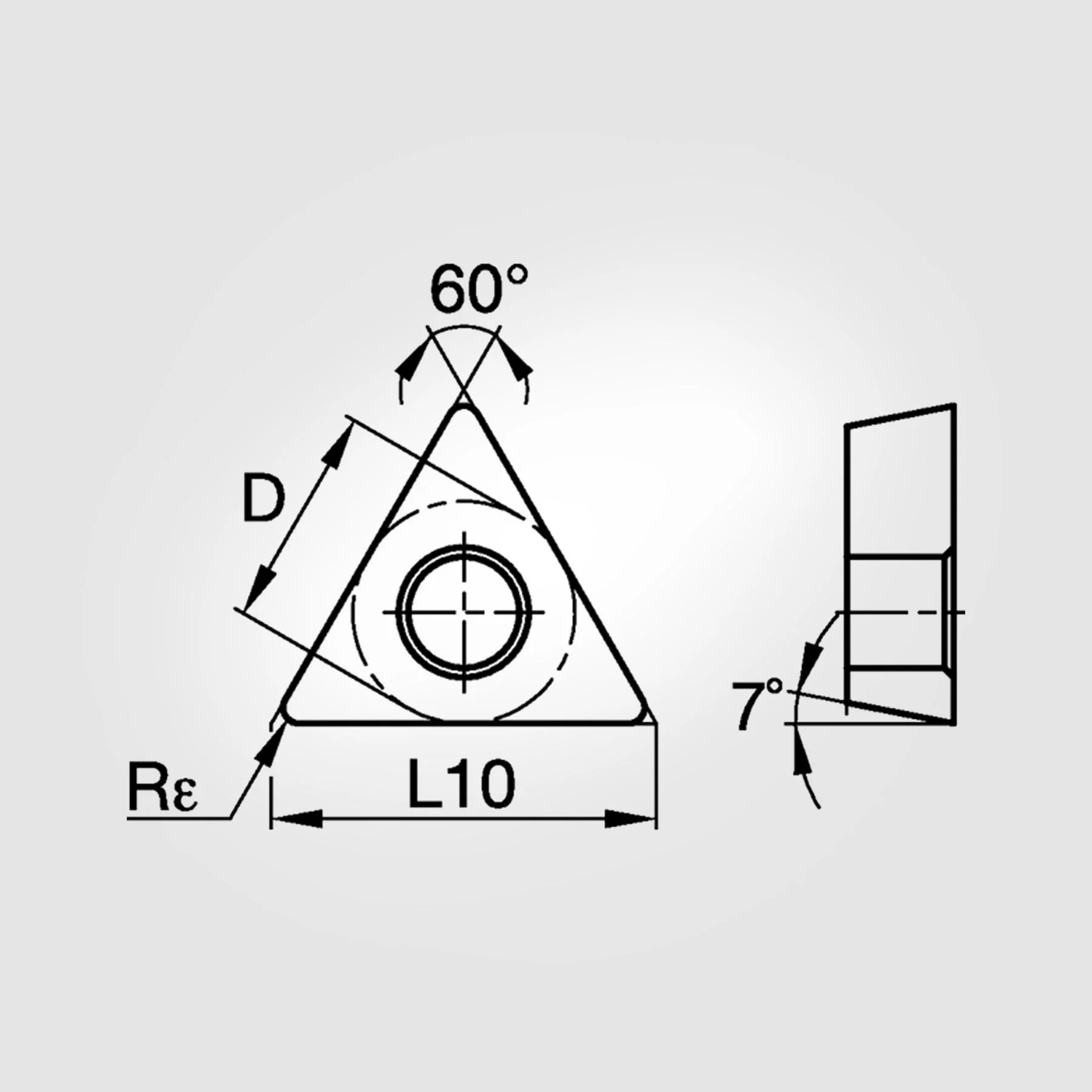

• Insert Shape: T-Triangle 60
• [D] Insert Size (Fraction): 3/8"
• [D] Insert Size (Inch): 0.375"
• [D] Insert Size (Metric): 9.525mm
• [D1] Insert Hole Size (Inch): 0.173"
• [D1] Insert Hole Size (Metric): 4.400mm
• [L10] Cutting Edge Length (Inch): 0.650"
• [L10] Cutting Edge Length (Metric): 16.500mm
• [S] Insert Thickness (Fraction): 5/32"
• [S] Insert Thickness (Inch): 0.156"
• [S] Insert Thickness (Metric): 3.970mm
• [Rε] Corner Radius (Fraction): 1/64"
• [Rε] Corner Radius (Inch): 0.016"
• [Rε] Corner Radius (Metric): 0.400mm

Country of Origin is subject to change.

Safety data sheets upon request.
