The GOLD Standard in Turning Inserts!

• For applications in steels and cast iron.
• Roughing geometry with stronger edge line for demanding applications.
• Beyond™ Drive™ grades included.

Materials

• Primary: Steel
• Secondary: Cast Iron

Insert Data

• Quantity: 5
• Grade: KCP25C
• Material Type: FERT
• Catalog: SCMT3252
• Chip Breaker: MF
• Tool Family: Screw-On

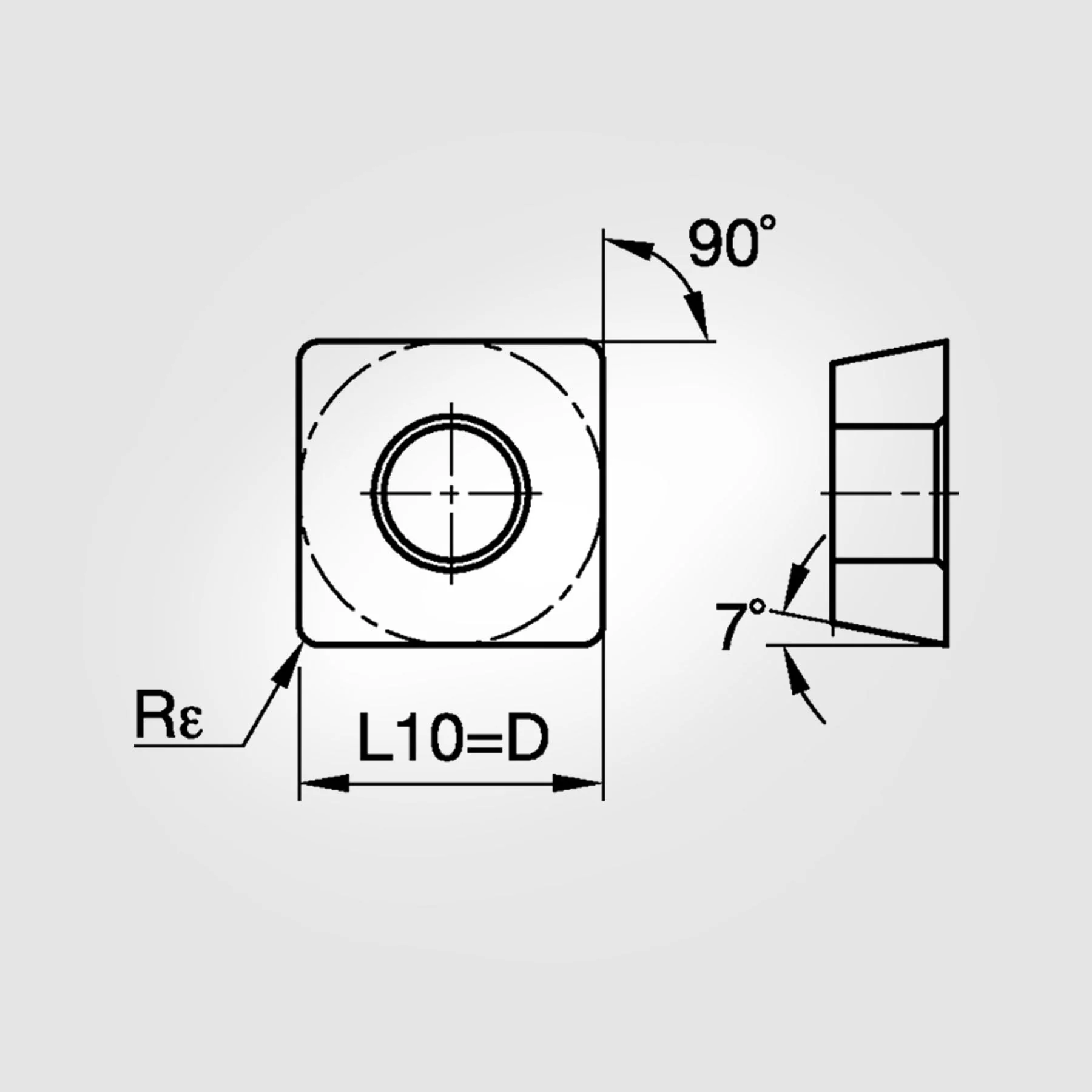

• Insert Shape: S-Square 90
• [D] Insert Size (Fraction): 3/8"
• [D] Insert Size (Inch): 0.375"
• [D] Insert Size (Metric): 9.525mm
• [D1] Insert Hole Size (Inch): 0.173"
• [D1] Insert Hole Size (Metric): 4.400mm
• [L10] Cutting Edge Length (Inch): 0.375"
• [L10] Cutting Edge Length (Metric): 9.525mm
• [S] Insert Thickness (Fraction): 5/32"
• [S] Insert Thickness (Inch): 0.156"
• [S] Insert Thickness (Metric): 3.969mm
• [Rε] Corner Radius (Fraction): 1/32"
• [Rε] Corner Radius (Inch): 0.031"
• [Rε] Corner Radius (Metric): 0.800mm

Country of Origin is subject to change.

Safety data sheets upon request.
