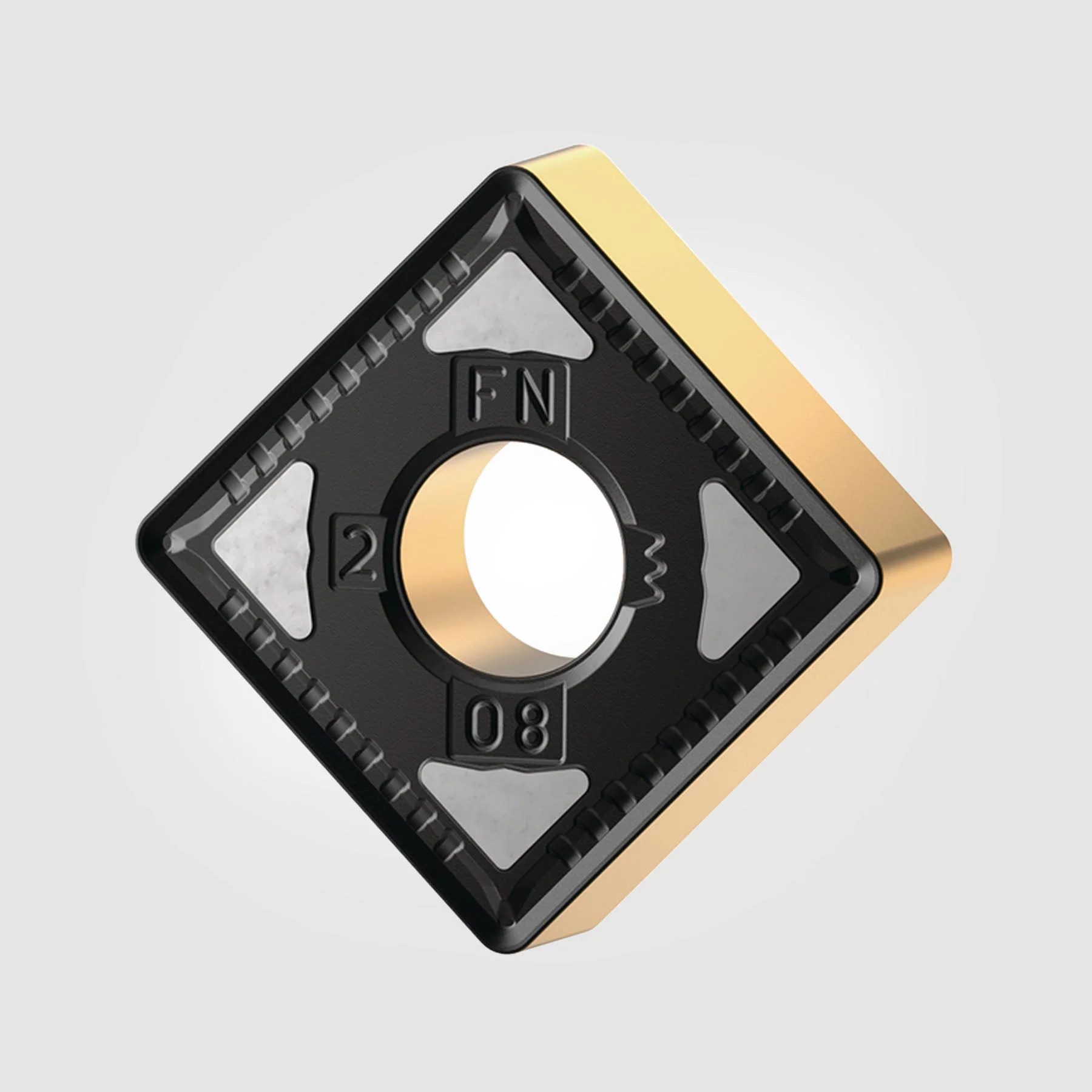

The GOLD Standard in Turning Inserts!

• For applications in steels and cast iron.
• Roughing geometry with stronger edge line for demanding applications.
• Beyond™ Drive™ grades included.

Materials

• Primary: Steel
• Secondary: Cast Iron

Insert Data

• Quantity: 5
• Grade: KCP25C
• Material Type: FERT
• Catalog: SNMG431
• Chip Breaker: FN
• Tool Family: Kenloc™

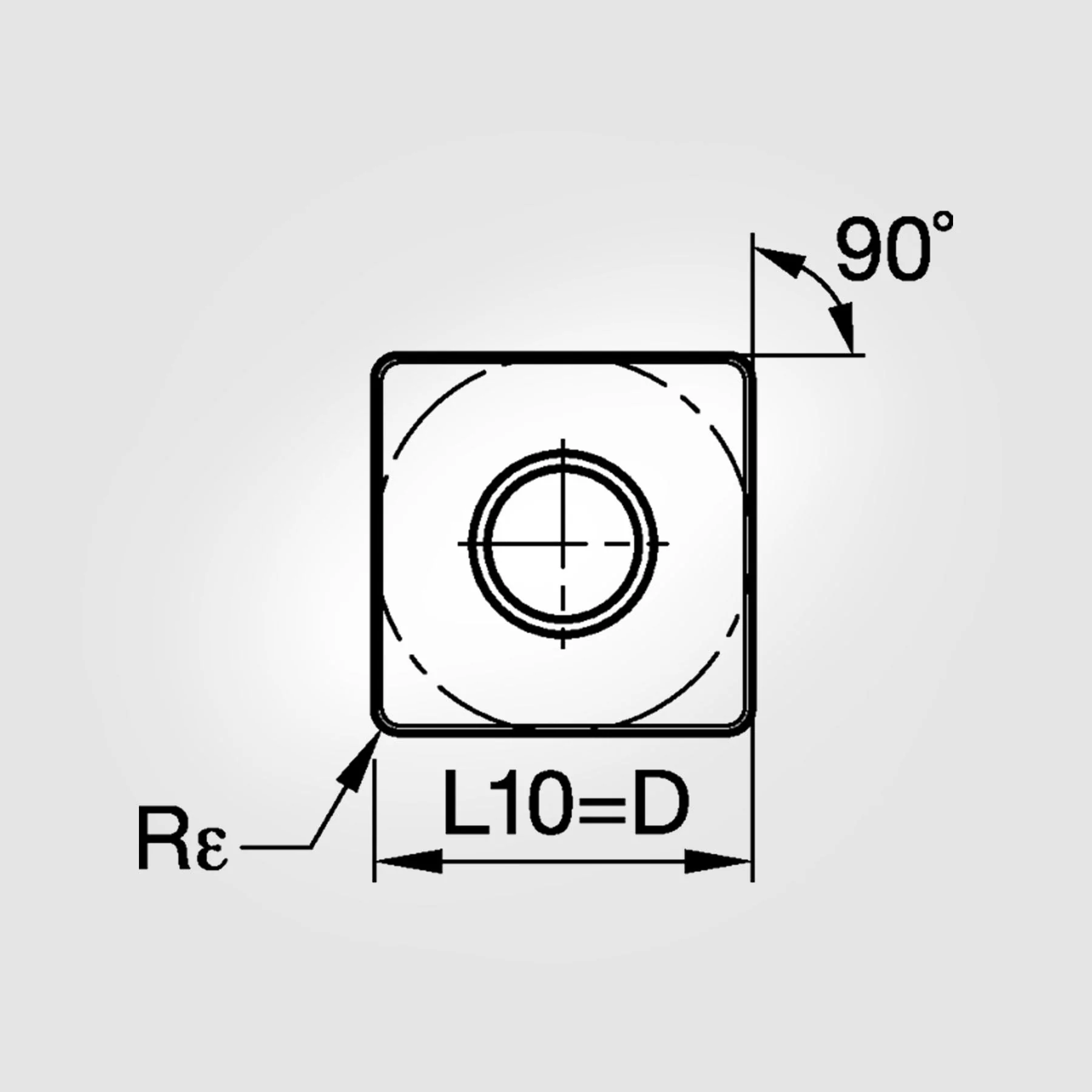

• Insert Shape: S-Square 90
• [D] Insert Size (Fraction): 1/2"
• [D] Insert Size (Inch): 0.500"
• [D] Insert Size (Metric): 12.700mm
• [D1] Insert Hole Size (Inch): 0.203"
• [D1] Insert Hole Size (Metric): 5.160mm
• [L10] Cutting Edge Length (Inch): 0.500"
• [L10] Cutting Edge Length (Metric): 12.700mm
• [S] Insert Thickness (Fraction): 3/16"
• [S] Insert Thickness (Inch): 0.188"
• [S] Insert Thickness (Metric): 4.760mm
• [Rε] Corner Radius (Fraction): 1/64"
• [Rε] Corner Radius (Inch): 0.016"
• [Rε] Corner Radius (Metric): 0.400mm

Country of Origin is subject to change.

Safety data sheets upon request.
