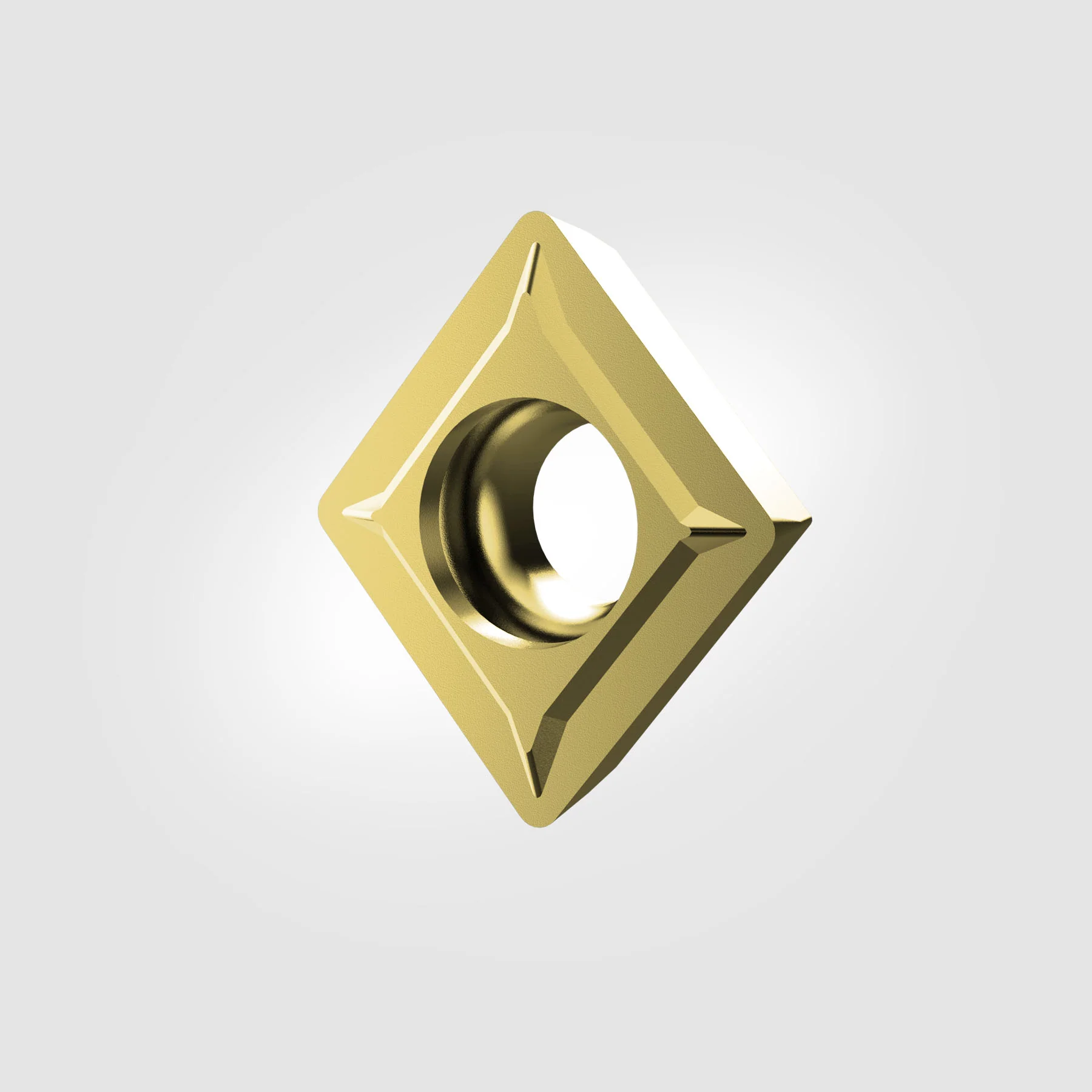

ISO Carbide Inserts CPMT-LF

• Finishing geometry with light cutting action.
• Used in multiple material groups.
• Beyond™ Drive™ grades included.

Materials

• Stainless Steel, Steel, High-Temp Alloys

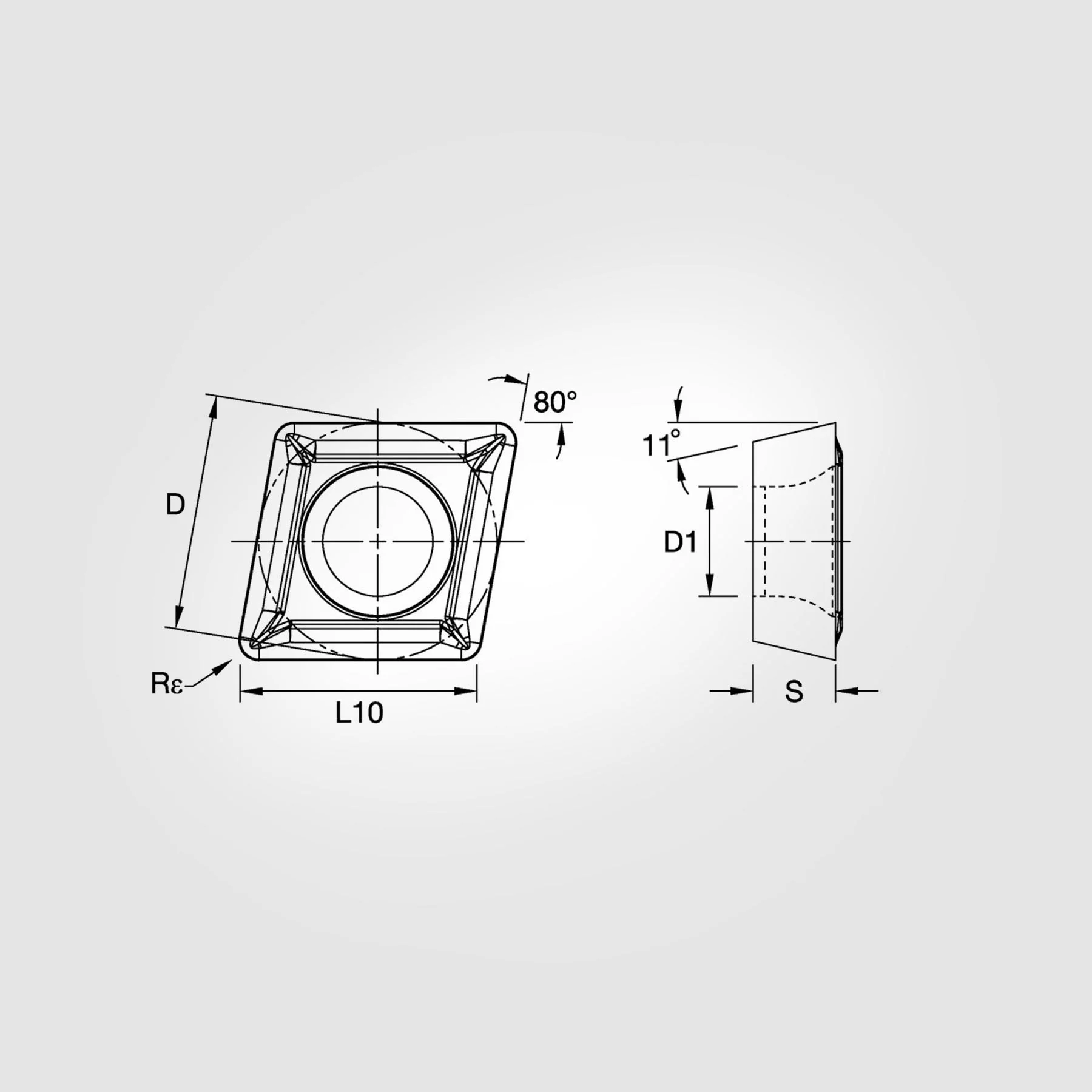

Technical Data

• [REPSILON] Corner Radius MM: 0.8000mm
• [REPSILON] Corner Radius Inch: 0.031200"
• [D1] Insert Hole Size Metric: 4.4000mm
• [D1] Insert Hole Size Inch: 0.1732"
• [S] Insert Thickness Metric: 3.9700mm
• [S] Insert Thickness Inch: 0.1563"
• [L10] Ins Cut Edge Length mm: 9.6720mm
• [L10] Ins Cut Edge Length In: 0.3808"
• [D] Insert IC Size Metric: 9.5250mm
• [D] Insert IC Size Inch: 0.3750"

Country of Origin is subject to change.

Safety data sheets upon request.
