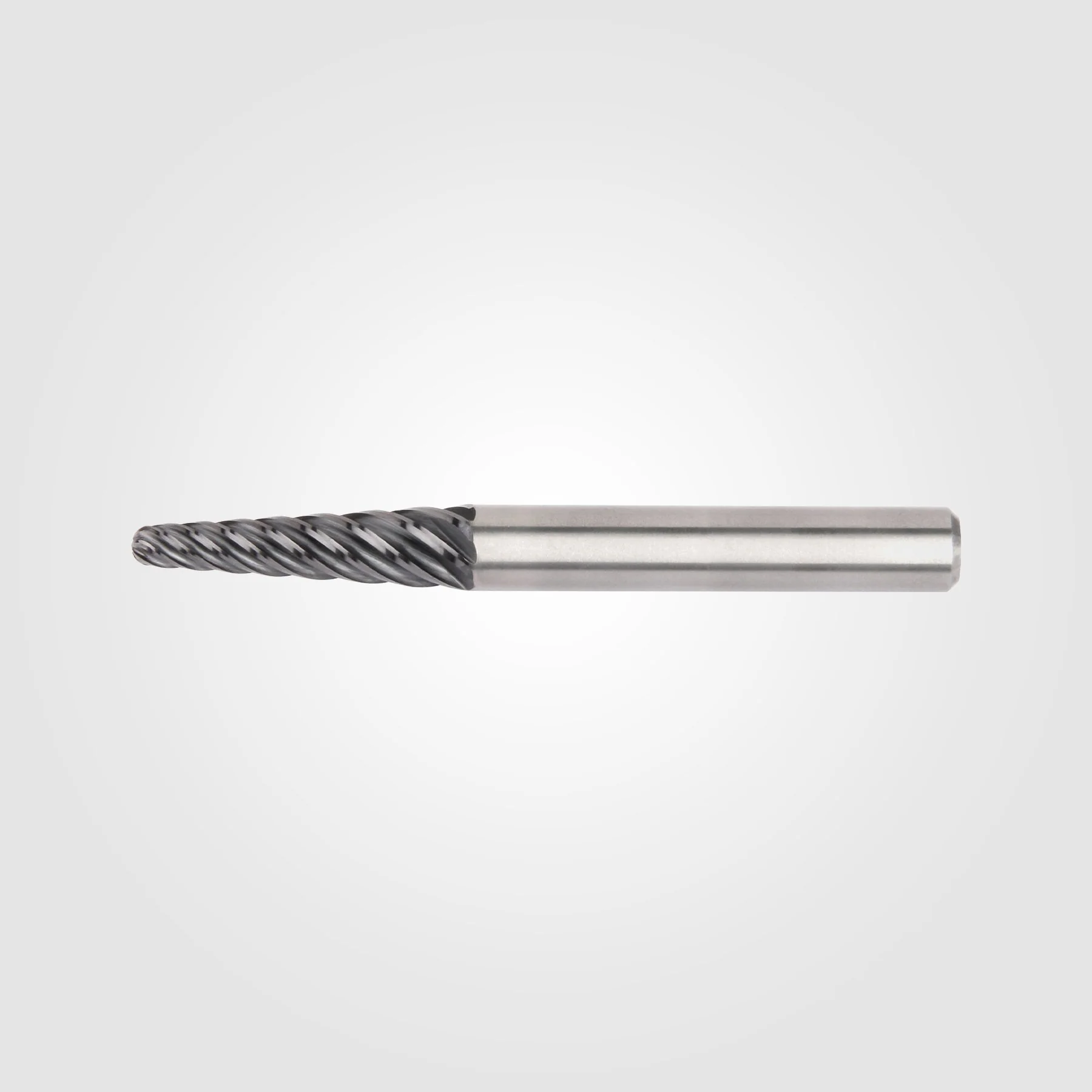

HARVI III (TAPER BALL NOSE) 3/16" x 1/2" x 1 1/4" x 4" 6-FLUTE SOLID CARBIDE ENDMILL 5970225

Product image 1

HARVI III (TAPER BALL NOSE) 3/16" x 1/2" x 1 1/4" x 4" 6-FLUTE SOLID CARBIDE ENDMILL 5970225

The HARVI III taper ball nose was designed for 5-axis machining of tough materials. Increase your output and solve capacity issues by significantly reducing your machine time!

Absolute Beast in Titanium
  • Designed for highly productive 3D roughing and finishing operations
  • Center cutting for expanded ramping capabilities
  • Optimized geometry for titanium machining
  • Unequal flute spacing minimizes chatter for smoother machining
Materials
  • Steel, Stainless Steel, Cast Iron, High-Temp Alloys, Hardened Materials
Technical Data
  • Grade: KCPM15
  • Coating: AlTiN
  • Series: UJBE
  • Number of Flutes: 6
  • Adapter Style: Straight-Cylindrical
  • Effective Cutting Diameter: 0.1875"
  • Shank: 0.500"
  • Length of Cut: 1.250"
  • Maximum Depth: 1.250"
  • Overall Length: 4.000"
  • Corner Style: Ball Nose
  • Lead Angle (ANSI): 6°
  • Helix Angle: 38°

Country of Origin is subject to change.

Safety data sheets upon request.

$137.91

Original: $394.04

-65%
HARVI III (TAPER BALL NOSE) 3/16" x 1/2" x 1 1/4" x 4" 6-FLUTE SOLID CARBIDE ENDMILL 5970225—

$394.04

$137.91

Product Information

Shipping & Returns

Description

The HARVI III taper ball nose was designed for 5-axis machining of tough materials. Increase your output and solve capacity issues by significantly reducing your machine time!

Absolute Beast in Titanium
  • Designed for highly productive 3D roughing and finishing operations
  • Center cutting for expanded ramping capabilities
  • Optimized geometry for titanium machining
  • Unequal flute spacing minimizes chatter for smoother machining
Materials
  • Steel, Stainless Steel, Cast Iron, High-Temp Alloys, Hardened Materials
Technical Data
  • Grade: KCPM15
  • Coating: AlTiN
  • Series: UJBE
  • Number of Flutes: 6
  • Adapter Style: Straight-Cylindrical
  • Effective Cutting Diameter: 0.1875"
  • Shank: 0.500"
  • Length of Cut: 1.250"
  • Maximum Depth: 1.250"
  • Overall Length: 4.000"
  • Corner Style: Ball Nose
  • Lead Angle (ANSI): 6°
  • Helix Angle: 38°

Country of Origin is subject to change.

Safety data sheets upon request.
