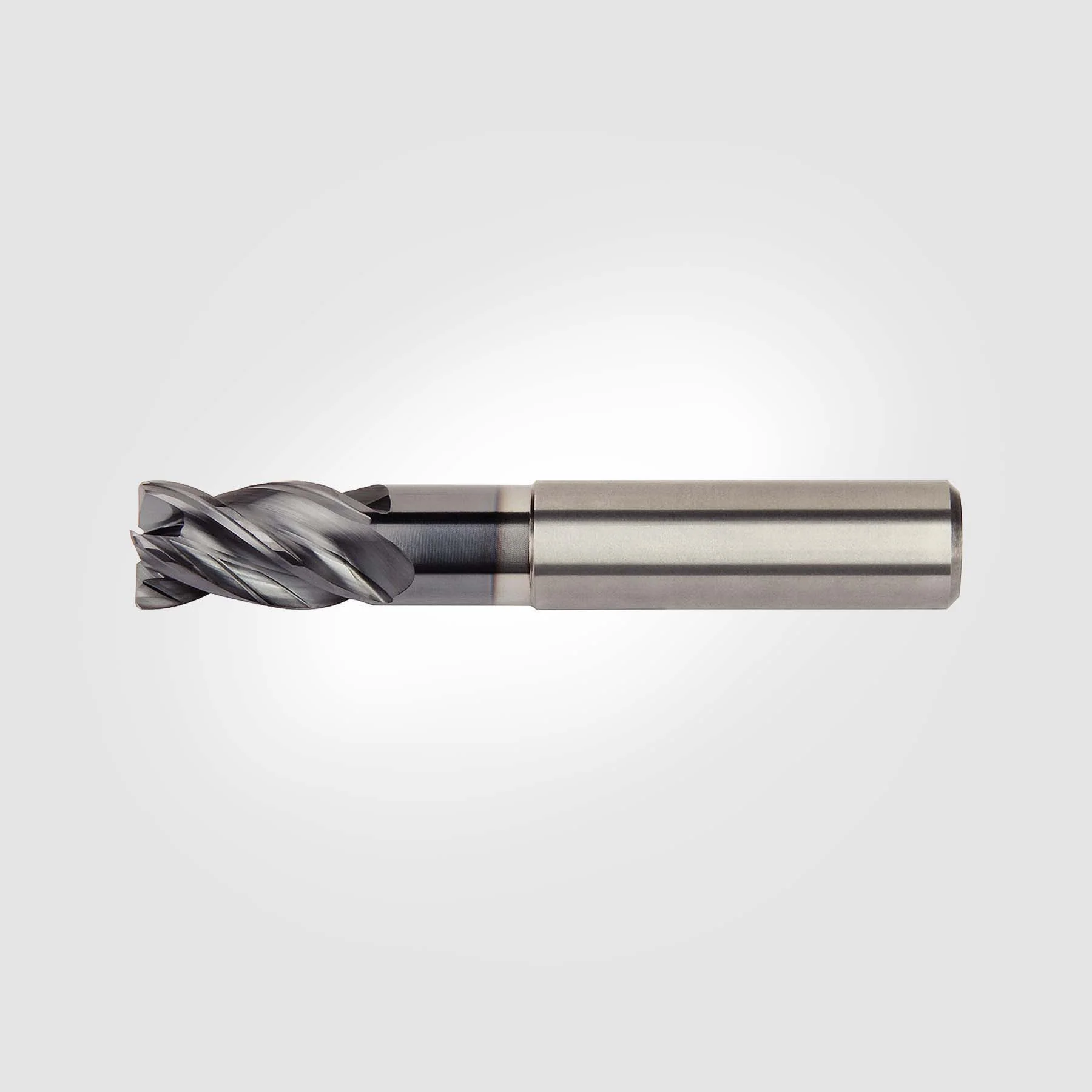

"The HARVI I TE is my go-to standard for roughing all hard materials, including titanium and high-temp alloys. Its capable of ramping at 45° and is an Absolute Beast when it comes to full slotting and pocketing."

- TITAN GILROY

Maximum metal removal in Stainless Steel & High-Temperature Alloys

• Increased tool stability (proprietary core design)
• Reduced vibration and friction
• Innovative chip gashes in the flute that reduce cutting forces and support efficient chip evacuation
• Twisted cutting edge increases corner stability
• High-performer in steel, stainless steel, cast iron, and high-temperature alloys

Materials

• Steel, Stainless Steel, Cast Iron, Hardened Materials

Technical Data

• Grade: KCPM15
• Coating: AlTiN
• Number of Flutes: 4
• Feature: Necked
• Adapter Style: Straight-Cylindrical
• Effective Cutting Diameter: 1.000"
• Shank: 1.000"
• Length of Cut: 1.125"
• Overall Length: 5.500"
• Corner Radius: 0.030"
• Helix Angle: 36°

Country of Origin is subject to change.

Safety data sheets upon request.
