Product Details

• Exact positioning of the spindle axis on the edges of the workpiece
• With integrated adapter
• Smallest unit of measure of 0,001 mm / 0.00005"
• Replaceable probes for maximum flexibility
• IP 64 dust- and waterproof

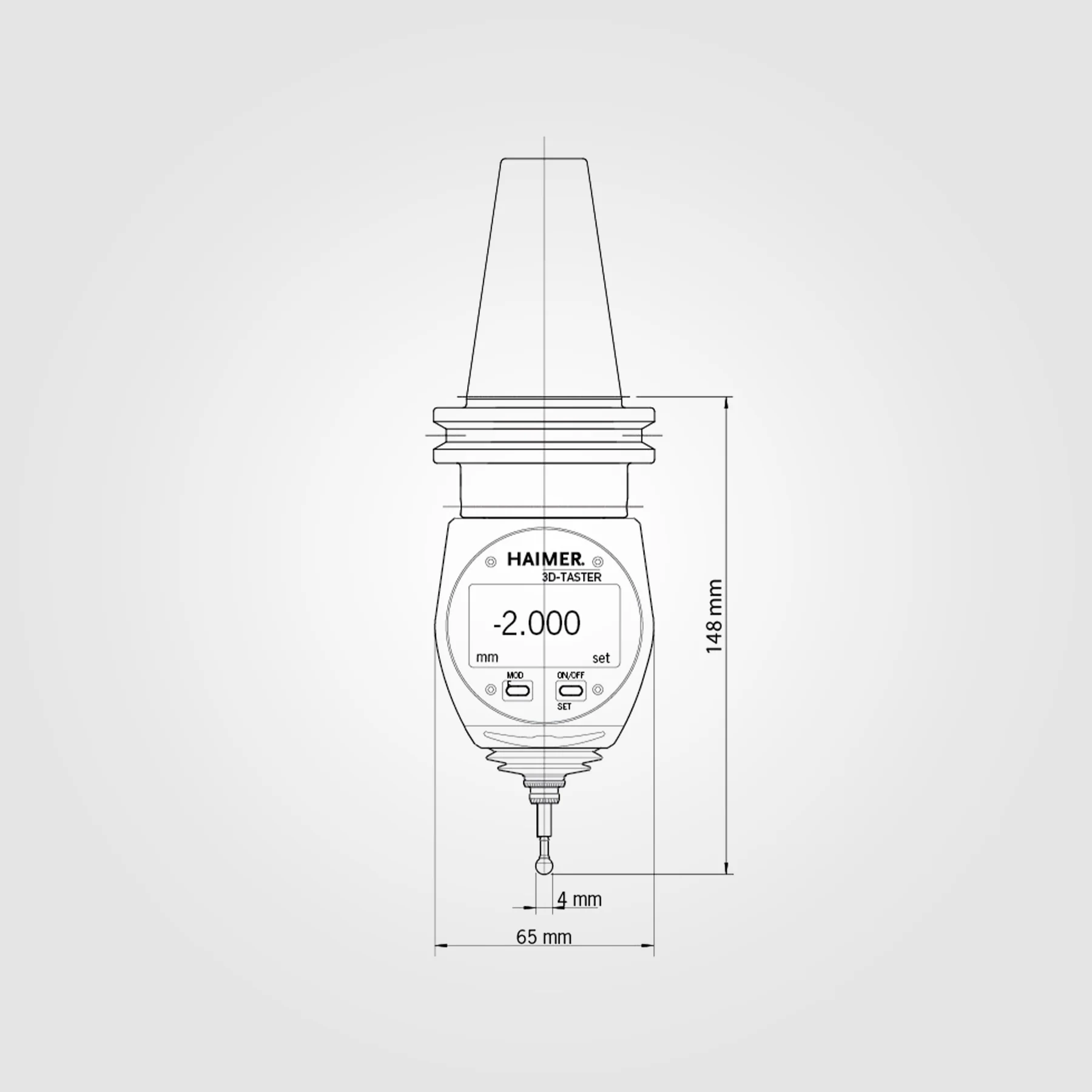

#wIntegratedAdapterBT40

Technical Data

• Shank Type: Taper
• Shank Size: BT40
• Accuracy: 0.0050 mm
• Point Diameter: 4 mm

#wIntegratedAdapterSK40

Technical Data

• Shank Type: Taper
• Shank Size: SK40
• Accuracy: 0.0050 mm
• Point Diameter: 4 mm

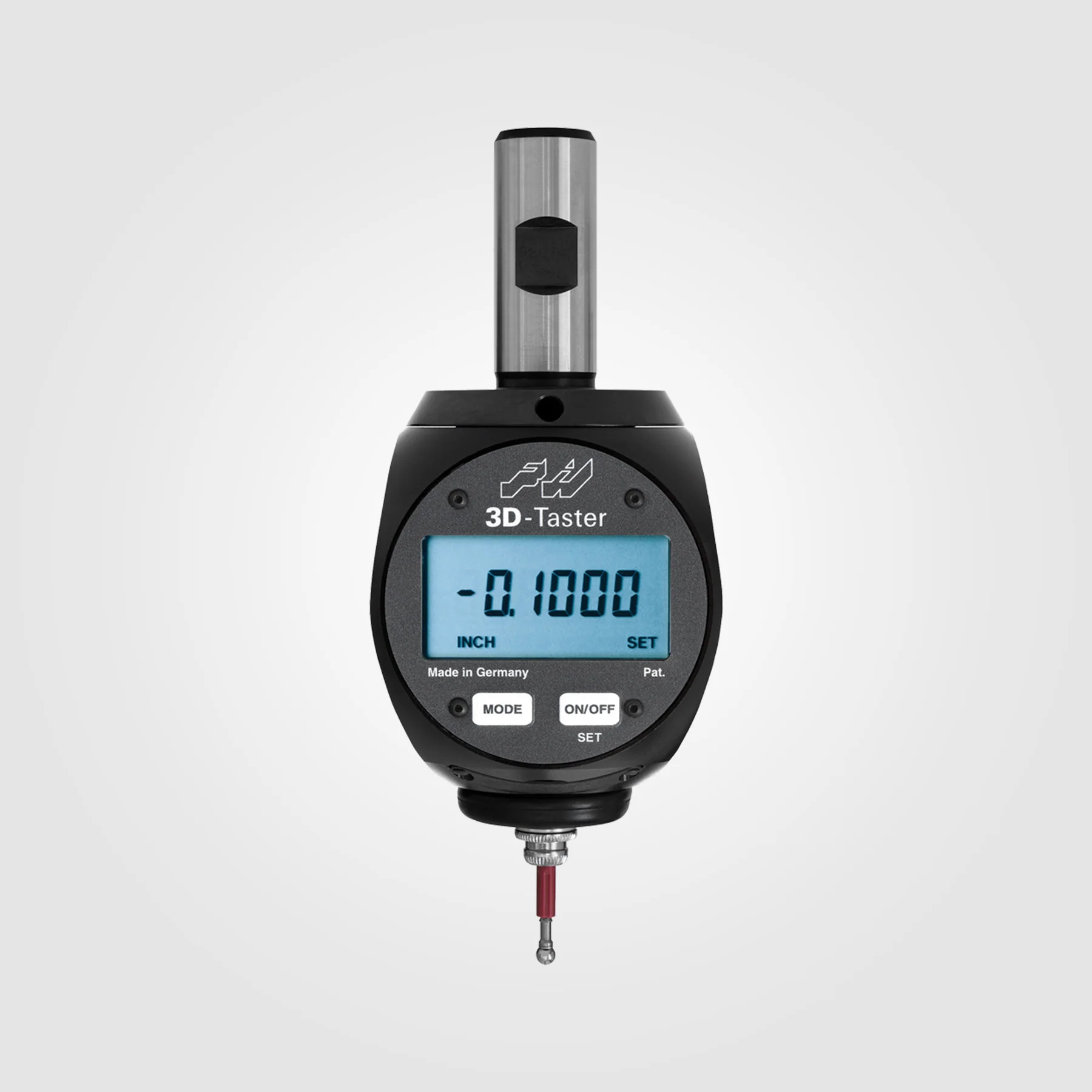

#Inch

Technical Data

• Shank Type: Straight
• Shank Size: 3/4"
• Point Diameter: 0.2000
• Resolution: 0.00005

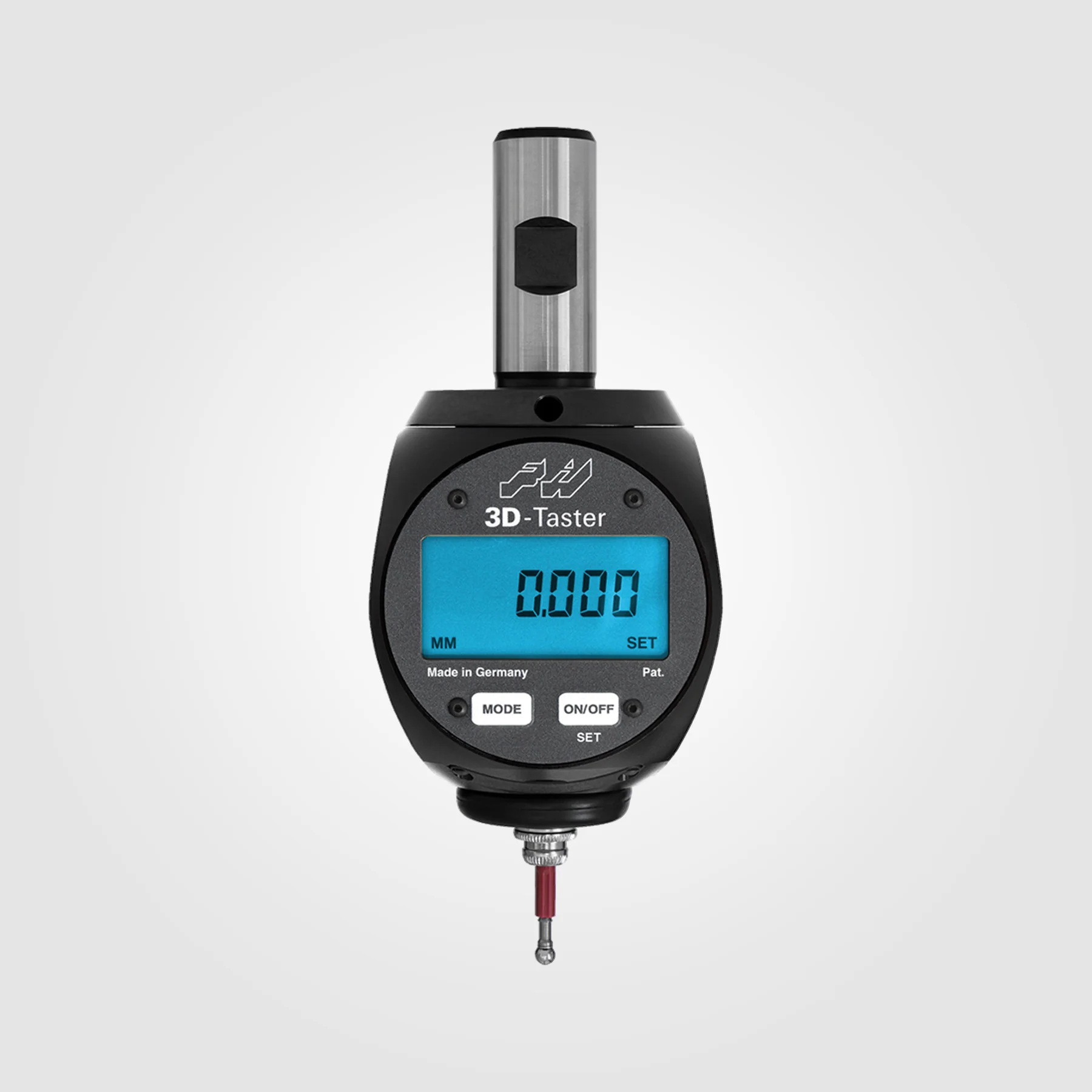

#NeutralModelMetricInch

Technical Data

• Shank Type: Straight
• Accuracy: 0.000020
• Resolution: 0.00005
