"The GOdrill™ is standard tooling in my shop and it should be in yours, too. We efficiently drill Plastic, Aluminum, Steel, Titanium, Inconel, and Monel with the same drill."

- TITAN GILROY

Visit AerospaceAcademy.com for advanced speeds and feeds recommendations.

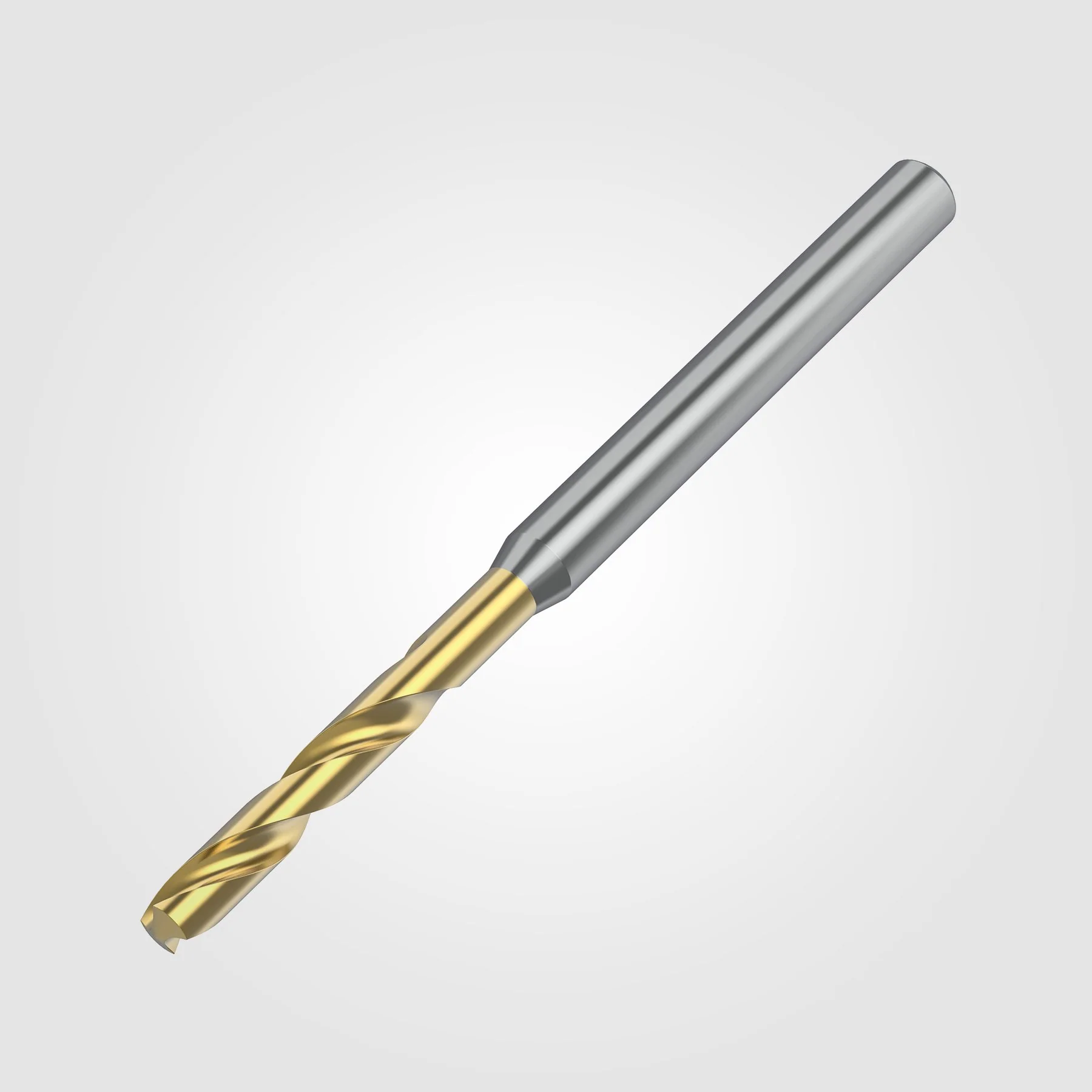

TITAN's Go-To Drill!

• Solid Carbide drilling for diameter 1-20mm (0.0394"-0.7874") for 3-8 x D drilling capability
• Reduced friction and heat with Marginless design
• Through-coolant available down to 1mm (0.0394")
• TiN top layer serves as wear indicator

Materials

• Steel, Stainless Steel, Cast Iron, High-Temp Alloys; Non-Ferrous Materials, Hardened Materials

Technical Data

• Adapter Style: Straight-Cylindrical
• Coating: TiN
• Grade: KC7325
• Through Coolant: No
• Flute Type: Spiral
• Number of Flutes: 2
• Flute x Diameter Ratio: 2.5
• Flute Length (Inch): 2.5591"
• Flute Length (Metric): 65.000mm
• Overall Length (Inch): 4.5276"
• Overall Length (Metric): 115.000mm
• Shank Diameter (Inch): 0.6229"
• Shank Diameter (Metric): 16.000mm
• Shank Length (Inch): 1.8898"
• Shank Length (Metric): 48.000mm
• Maximum Drill Depth (Inch): 1.7717"
• Maximum Drill Depth (Metric): 45.000mm
• Drill Point Length (Inch): 0.1035"
• Drill Point Length (Metric): 2.630mm
• Drill Point Angle): 140°

Country of Origin is subject to change.

Safety data sheets upon request.
