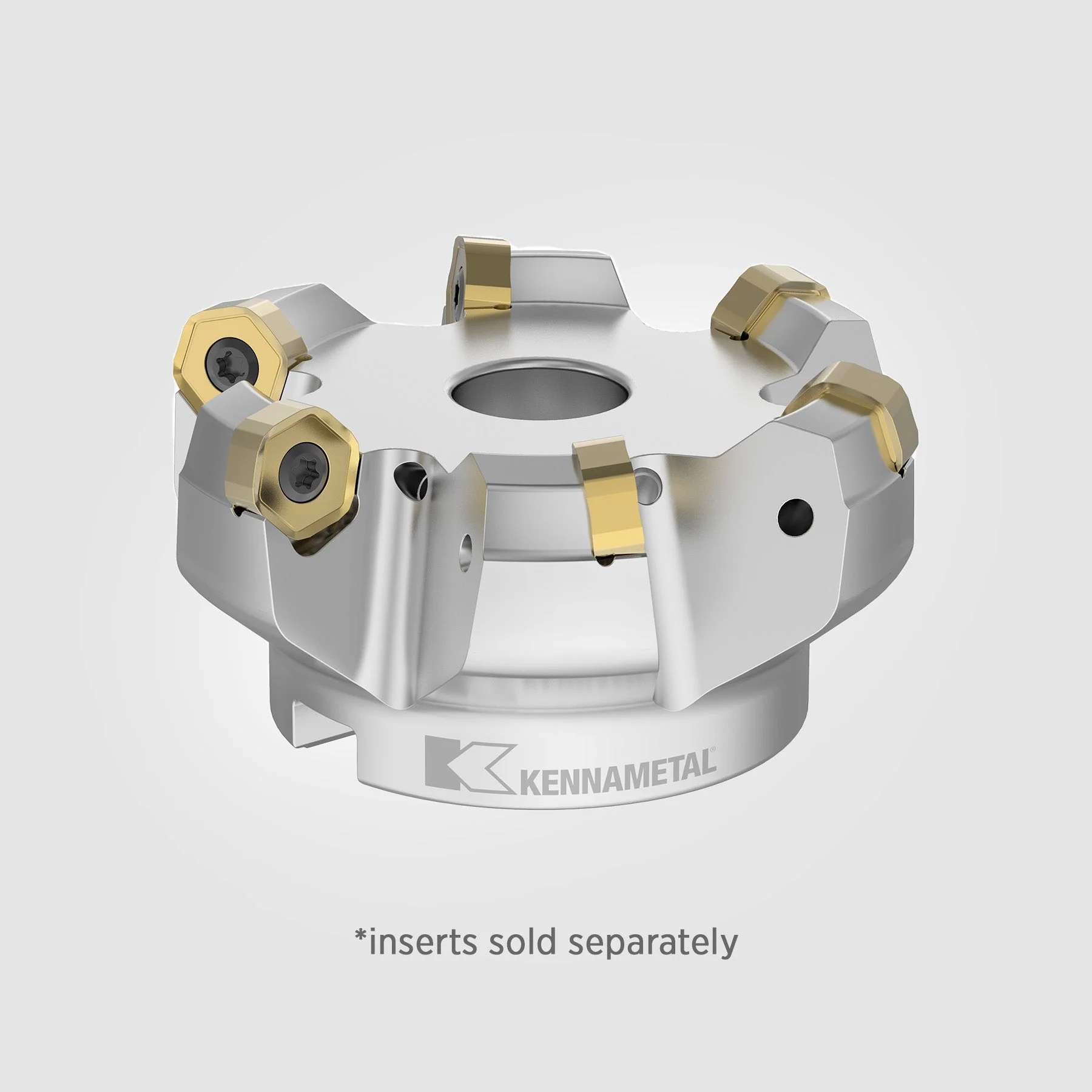

Dodeka Mini 15° High-Feed Shell Mill 80mm Dia with 8 Flutes 4153709
TITAN's Go-To Shell Mill!
- Twelve cutting edges per insert.
- Maximum number of teeth per diameter.
- Productivity booster in all materials.
- Face Milling
- Adapter Style: A-Socket Head Cap Screw
- Through Coolant: Yes
- Number of Flutes: 8
- Arbor Diameter (Inch): 1.063"
- Arbor Diameter (Metric): 27.000mm
- Effective Cutting Diameter (Inch): 3.150"
- Effective Cutting Diameter (Metric): 80.000mm
- Maximum Cutting Diameter (Inch): 3.667"
- Maximum Cutting Diameter (Metric): 93.130mm"
- Maximum Cutting Depth (Inch): 0.064"
- Maximum Cutting Depth (Metric): 1.630mm
- Overall Length (Inch): 1.968"
- Overall Length: 50.000mm
- Max RPM: 7,900
Country of Origin is subject to change.
Safety data sheets upon request.
