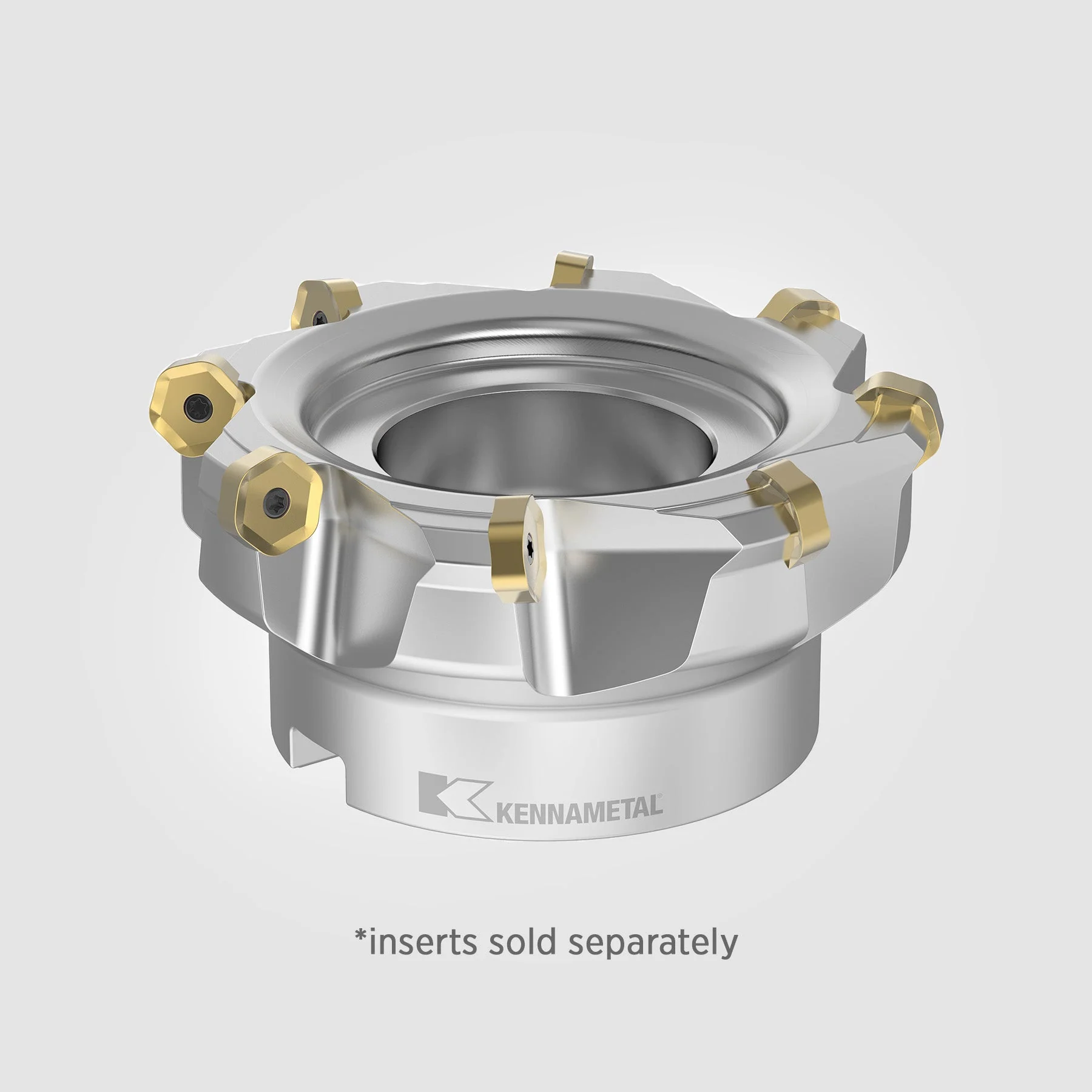

Dodeka Mini 60° Shell Mill 125mm Dia with 8 Flutes 4147722
TITAN's Go-To Shell Mill!
- Twelve cutting edges per insert.
- Maximum number of teeth per diameter.
- Productivity booster in all materials.
- Chamfer Milling
- Face Milling
- Adapter Style: B-Cutter Retention Screw
- Through Coolant: Yes
- Number of Flutes: 8
- Arbor Diameter (Inch): 1.5748"
- Arbor Diameter (Metric): 40.000mm
- Effective Cutting Diameter (Inch): 4.921"
- Effective Cutting Diameter (Metric): 125.000mm
- Maximum Cutting Diameter (Inch): 5.170"
- Maximum Cutting Diameter (Metric): 131.330mm"
- Maximum Cutting Depth (Inch): 0.171"
- Maximum Cutting Depth (Metric): 4.300mm
- Overall Length (Inch): 2.480"
- Overall Length: 63.000mm
- Max RPM: 5,050
Country of Origin is subject to change.
Safety data sheets upon request.
$439.41
Original: $1,255.45
-65%Dodeka Mini 60° Shell Mill 125mm Dia with 8 Flutes 4147722—
$1,255.45
$439.41Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
TITAN's Go-To Shell Mill!
- Twelve cutting edges per insert.
- Maximum number of teeth per diameter.
- Productivity booster in all materials.
- Chamfer Milling
- Face Milling
- Adapter Style: B-Cutter Retention Screw
- Through Coolant: Yes
- Number of Flutes: 8
- Arbor Diameter (Inch): 1.5748"
- Arbor Diameter (Metric): 40.000mm
- Effective Cutting Diameter (Inch): 4.921"
- Effective Cutting Diameter (Metric): 125.000mm
- Maximum Cutting Diameter (Inch): 5.170"
- Maximum Cutting Diameter (Metric): 131.330mm"
- Maximum Cutting Depth (Inch): 0.171"
- Maximum Cutting Depth (Metric): 4.300mm
- Overall Length (Inch): 2.480"
- Overall Length: 63.000mm
- Max RPM: 5,050
Country of Origin is subject to change.
Safety data sheets upon request.
