Dodeka Mini 60° Shell Mill 40mm Dia with 4 Flutes 4147022

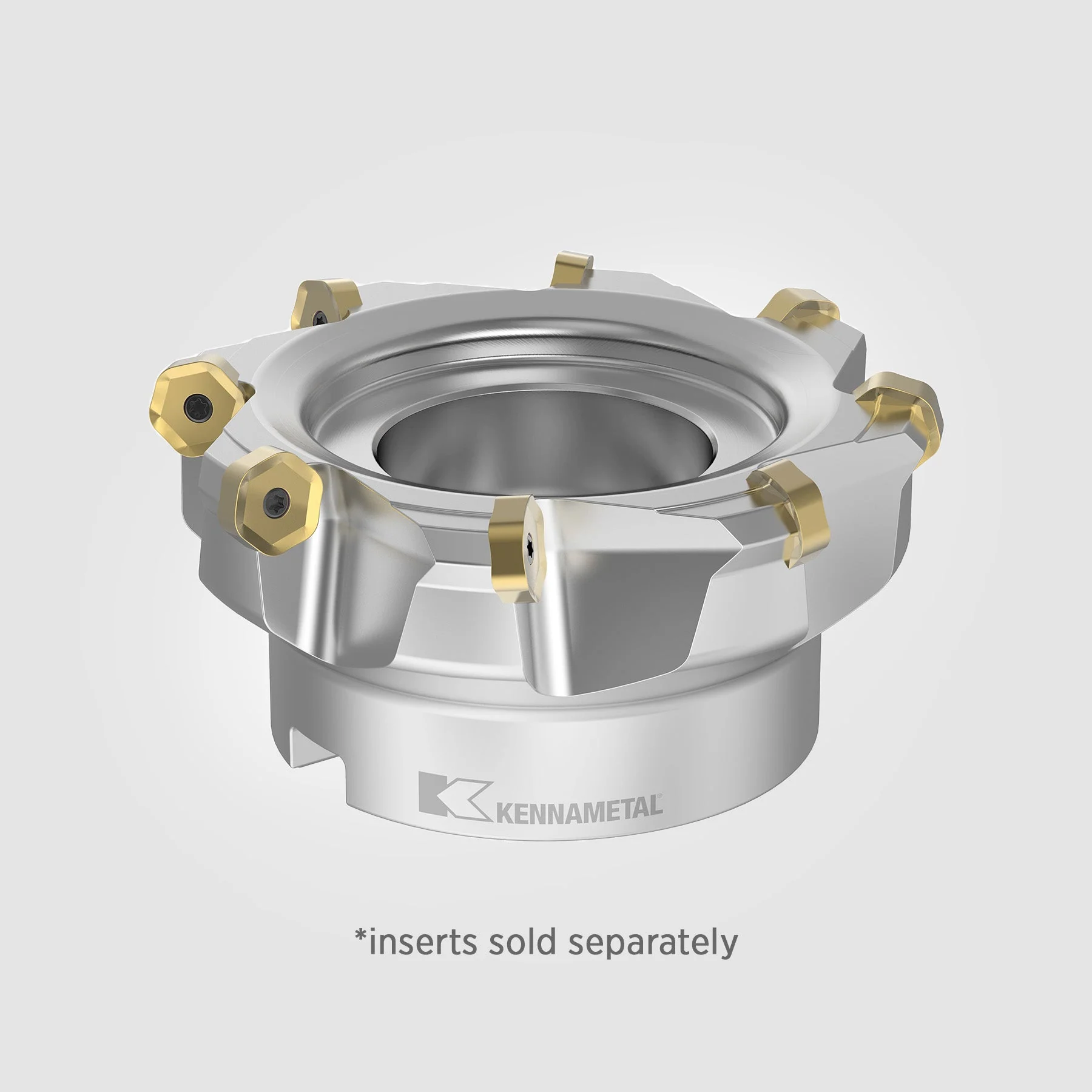

Product image 1

Dodeka Mini 60° Shell Mill 40mm Dia with 4 Flutes 4147022

TITAN's Go-To Shell Mill!
  • Twelve cutting edges per insert.
  • Maximum number of teeth per diameter.
  • Productivity booster in all materials.
Applications
  • Chamfer Milling
  • Face Milling
Technical Data
  • Adapter Style: KL Screw
  • Through Coolant: Yes
  • Number of Flutes: 4
  • Arbor Diameter (Inch): 0.8661"
  • Arbor Diameter (Metric): 22.000mm
  • Effective Cutting Diameter (Inch): 1.575"
  • Effective Cutting Diameter (Metric): 40.000mm
  • Maximum Cutting Diameter (Inch): 1.825"
  • Maximum Cutting Diameter (Metric): 46.360mm"
  • Maximum Cutting Depth (Inch): 0.171"
  • Maximum Cutting Depth (Metric): 4.300mm
  • Overall Length (Inch): 1.575"
  • Overall Length: 40.000mm
  • Max RPM: 15,800

Country of Origin is subject to change.

Safety data sheets upon request.

$236.22

Original: $674.92

-65%
Dodeka Mini 60° Shell Mill 40mm Dia with 4 Flutes 4147022—

$674.92

$236.22

Product Information

Shipping & Returns

Description

TITAN's Go-To Shell Mill!
  • Twelve cutting edges per insert.
  • Maximum number of teeth per diameter.
  • Productivity booster in all materials.
Applications
  • Chamfer Milling
  • Face Milling
Technical Data
  • Adapter Style: KL Screw
  • Through Coolant: Yes
  • Number of Flutes: 4
  • Arbor Diameter (Inch): 0.8661"
  • Arbor Diameter (Metric): 22.000mm
  • Effective Cutting Diameter (Inch): 1.575"
  • Effective Cutting Diameter (Metric): 40.000mm
  • Maximum Cutting Diameter (Inch): 1.825"
  • Maximum Cutting Diameter (Metric): 46.360mm"
  • Maximum Cutting Depth (Inch): 0.171"
  • Maximum Cutting Depth (Metric): 4.300mm
  • Overall Length (Inch): 1.575"
  • Overall Length: 40.000mm
  • Max RPM: 15,800

Country of Origin is subject to change.

Safety data sheets upon request.
