Dodeka Mini 30° Shell Mill 1.5" Dia with 5 Flutes 4136390

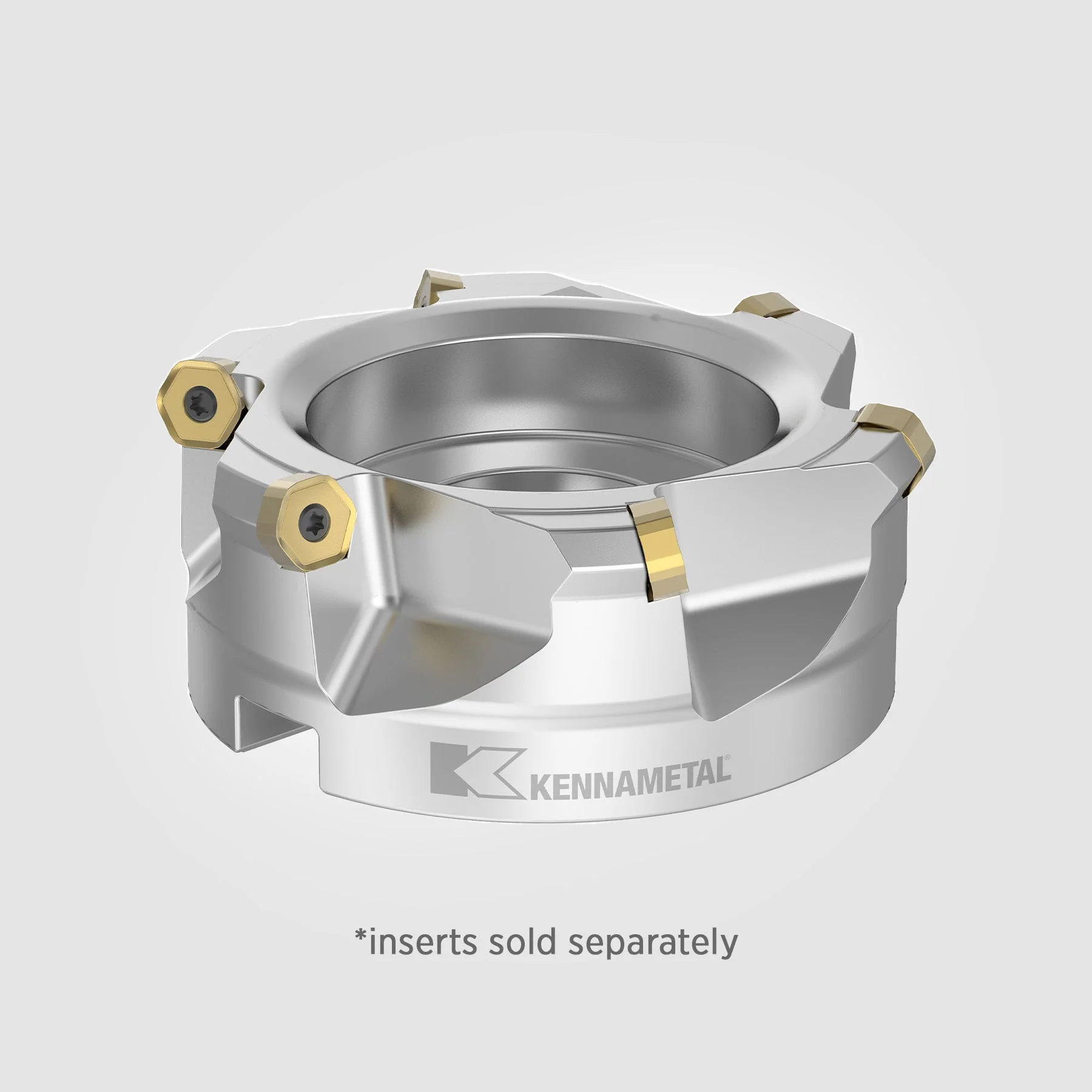

Product image 1

Dodeka Mini 30° Shell Mill 1.5" Dia with 5 Flutes 4136390

TITAN's Go-To Shell Mill!
  • Twelve cutting edges per insert.
  • Maximum number of teeth per diameter.
  • Productivity booster in all materials.
Applications
  • Chamfer Milling
  • Face Milling
Technical Data
  • Adapter Style: A-Socket Head Cap Screw
  • Through Coolant: Yes
  • Number of Flutes: 5
  • Arbor Diameter (Inch): 0.500"
  • Arbor Diameter (Metric): 12.700mm
  • Effective Cutting Diameter (Inch): 1.500"
  • Effective Cutting Diameter (Metric): 38.100mm
  • Maximum Cutting Diameter (Inch): 1.750"
  • Maximum Cutting Diameter (Metric): 44.460mm"
  • Maximum Cutting Depth (Inch): 0.171"
  • Maximum Cutting Depth (Metric): 4.300mm
  • Overall Length (Inch): 1.575"
  • Overall Length: 40.000mm
  • Max RPM: 16,700

Country of Origin is subject to change.

Safety data sheets upon request.

$270.49

Original: $772.84

-65%
Dodeka Mini 30° Shell Mill 1.5" Dia with 5 Flutes 4136390—

$772.84

$270.49

Product Information

Shipping & Returns

Description

TITAN's Go-To Shell Mill!
  • Twelve cutting edges per insert.
  • Maximum number of teeth per diameter.
  • Productivity booster in all materials.
Applications
  • Chamfer Milling
  • Face Milling
Technical Data
  • Adapter Style: A-Socket Head Cap Screw
  • Through Coolant: Yes
  • Number of Flutes: 5
  • Arbor Diameter (Inch): 0.500"
  • Arbor Diameter (Metric): 12.700mm
  • Effective Cutting Diameter (Inch): 1.500"
  • Effective Cutting Diameter (Metric): 38.100mm
  • Maximum Cutting Diameter (Inch): 1.750"
  • Maximum Cutting Diameter (Metric): 44.460mm"
  • Maximum Cutting Depth (Inch): 0.171"
  • Maximum Cutting Depth (Metric): 4.300mm
  • Overall Length (Inch): 1.575"
  • Overall Length: 40.000mm
  • Max RPM: 16,700

Country of Origin is subject to change.

Safety data sheets upon request.
