Dodeka 45° End Mill 1.25" Dia with 4 Flutes 4130521

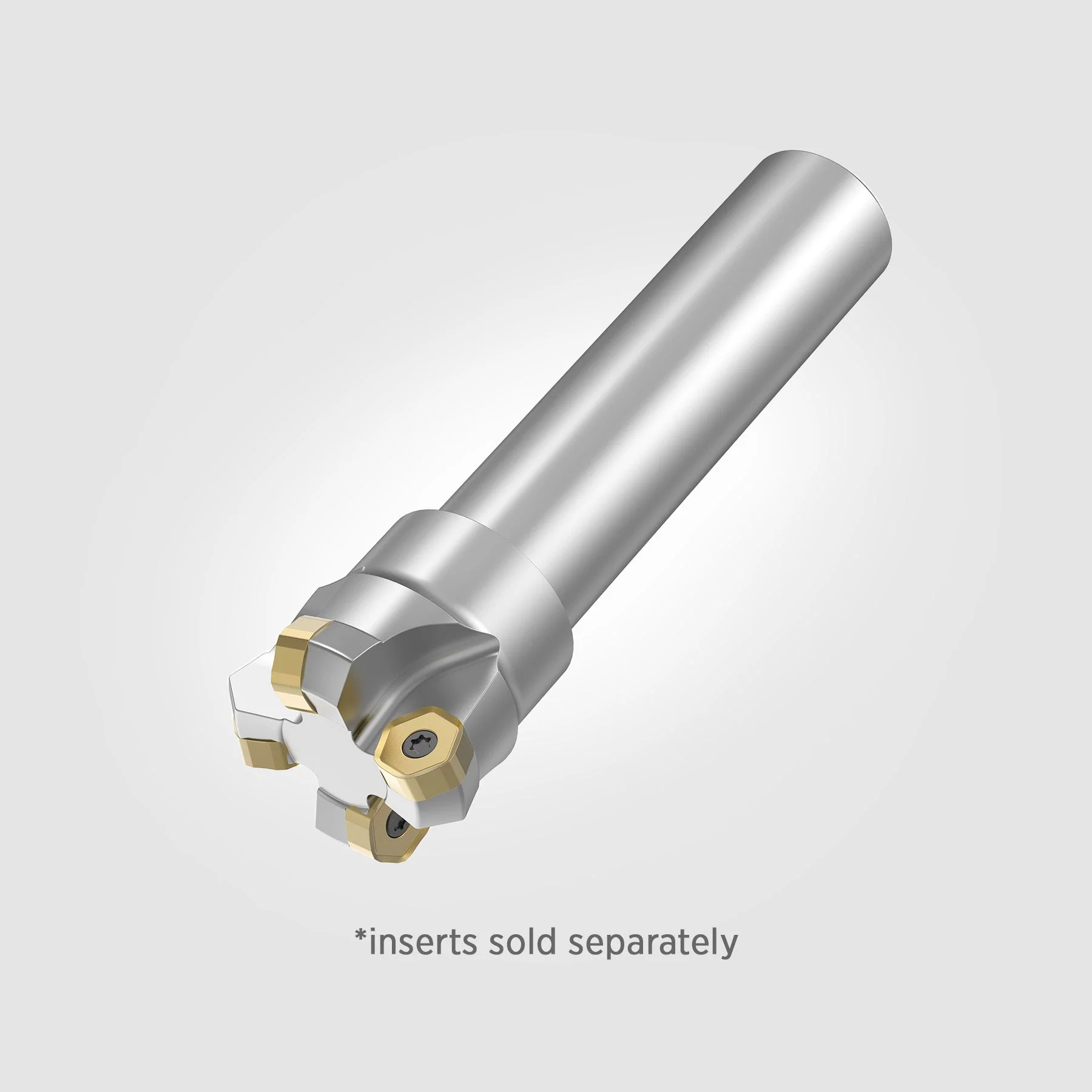

Product image 1

Dodeka 45° End Mill 1.25" Dia with 4 Flutes 4130521

TITAN's Go-To Indexable End Mill!
  • Twelve cutting edges per insert.
  • Maximum number of teeth per diameter.
  • Productivity booster in all materials.
Applications
  • Chamfer Milling
  • Face Milling
Technical Data
  • Adapter Style: Straight-Cylindrical
  • Through Coolant: Yes
  • Number of Flutes: 4
  • Arbor Diameter (Inch): 1.000"
  • Arbor Diameter (Metric): 25.400mm
  • Effective Cutting Diameter (Inch): 1.250"
  • Effective Cutting Diameter (Metric):31.750mm
  • Maximum Cutting Diameter (Inch): 1.572"
  • Maximum Cutting Diameter (Metric): 39.923mm"
  • Maximum Cutting Depth (Inch): 0.127"
  • Maximum Cutting Depth (Metric): 3.200mm
  • Overall Length (Inch): 5.200"
  • Overall Length: 132.100mm
  • Max RPM: 17,600

Country of Origin is subject to change.

Safety data sheets upon request.

$215.43

Original: $615.51

-65%
Dodeka 45° End Mill 1.25" Dia with 4 Flutes 4130521—

$615.51

$215.43

Product Information

Shipping & Returns

Description

TITAN's Go-To Indexable End Mill!
  • Twelve cutting edges per insert.
  • Maximum number of teeth per diameter.
  • Productivity booster in all materials.
Applications
  • Chamfer Milling
  • Face Milling
Technical Data
  • Adapter Style: Straight-Cylindrical
  • Through Coolant: Yes
  • Number of Flutes: 4
  • Arbor Diameter (Inch): 1.000"
  • Arbor Diameter (Metric): 25.400mm
  • Effective Cutting Diameter (Inch): 1.250"
  • Effective Cutting Diameter (Metric):31.750mm
  • Maximum Cutting Diameter (Inch): 1.572"
  • Maximum Cutting Diameter (Metric): 39.923mm"
  • Maximum Cutting Depth (Inch): 0.127"
  • Maximum Cutting Depth (Metric): 3.200mm
  • Overall Length (Inch): 5.200"
  • Overall Length: 132.100mm
  • Max RPM: 17,600

Country of Origin is subject to change.

Safety data sheets upon request.
