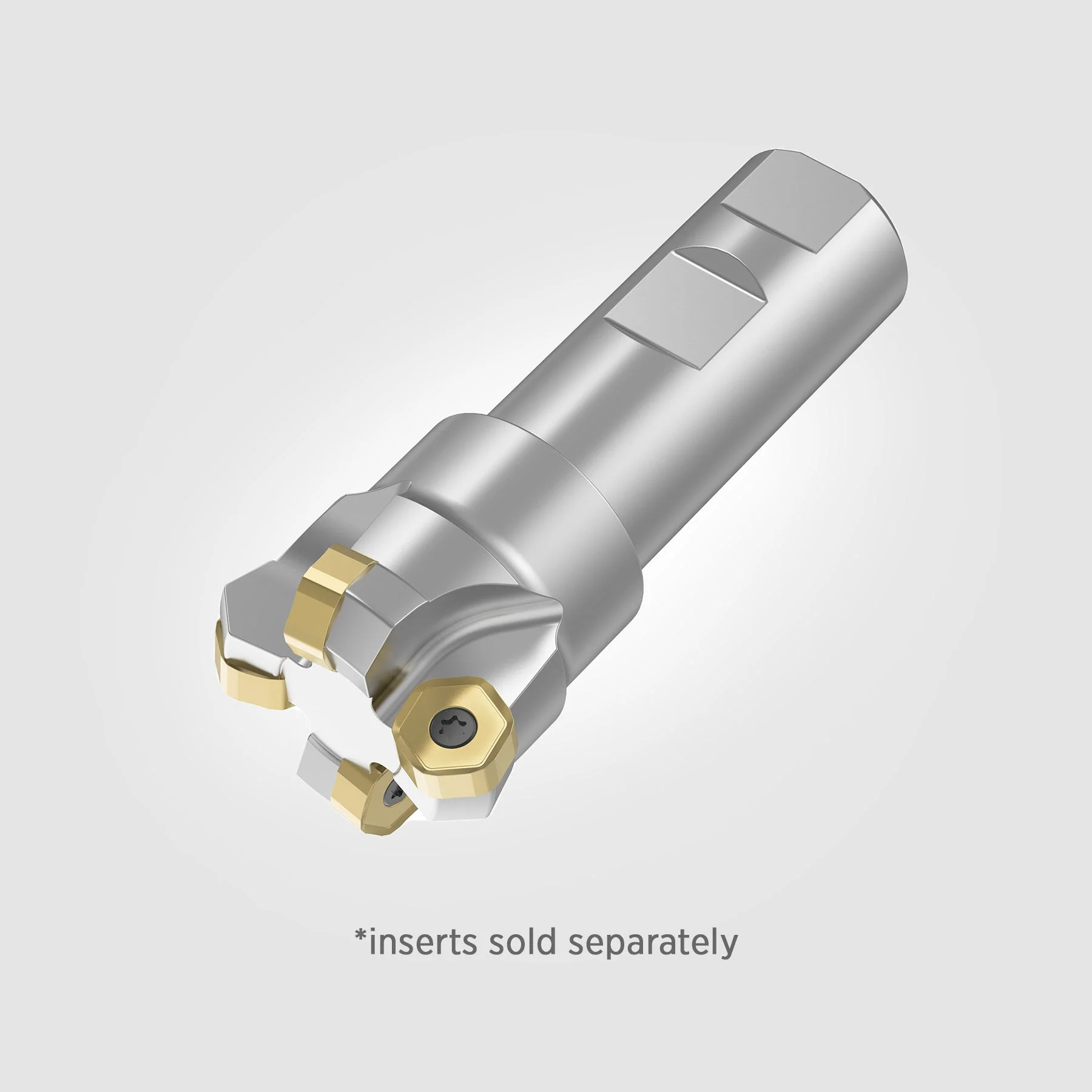

Dodeka Mini 45° Weldon End Mill 1.25" Dia with 4 Flutes 4130517
TITAN's Go-To Indexable End Mill!
- Twelve cutting edges per insert.
- Maximum number of teeth per diameter.
- Productivity booster in all materials.
- Chamfer Milling
- Face Milling
- Adapter Style: Weldon
- Through Coolant: Yes
- Number of Flutes: 4
- Arbor Diameter (Inch): 1.000"
- Arbor Diameter (Metric): 25.400mm
- Effective Cutting Diameter (Inch): 1.250"
- Effective Cutting Diameter (Metric): 31.750mm
- Maximum Cutting Diameter (Inch): 1.572"
- Maximum Cutting Diameter (Metric): 39.923mm"
- Maximum Cutting Depth (Inch): 0.127"
- Maximum Cutting Depth (Metric): 3.200mm
- Overall Length (Inch): 3.780"
- Overall Length: 96.000mm
- Max RPM: 17,600
Country of Origin is subject to change.
Safety data sheets upon request.
$206.84
Original: $590.97
-65%Dodeka Mini 45° Weldon End Mill 1.25" Dia with 4 Flutes 4130517—
$590.97
$206.84Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
TITAN's Go-To Indexable End Mill!
- Twelve cutting edges per insert.
- Maximum number of teeth per diameter.
- Productivity booster in all materials.
- Chamfer Milling
- Face Milling
- Adapter Style: Weldon
- Through Coolant: Yes
- Number of Flutes: 4
- Arbor Diameter (Inch): 1.000"
- Arbor Diameter (Metric): 25.400mm
- Effective Cutting Diameter (Inch): 1.250"
- Effective Cutting Diameter (Metric): 31.750mm
- Maximum Cutting Diameter (Inch): 1.572"
- Maximum Cutting Diameter (Metric): 39.923mm"
- Maximum Cutting Depth (Inch): 0.127"
- Maximum Cutting Depth (Metric): 3.200mm
- Overall Length (Inch): 3.780"
- Overall Length: 96.000mm
- Max RPM: 17,600
Country of Origin is subject to change.
Safety data sheets upon request.
