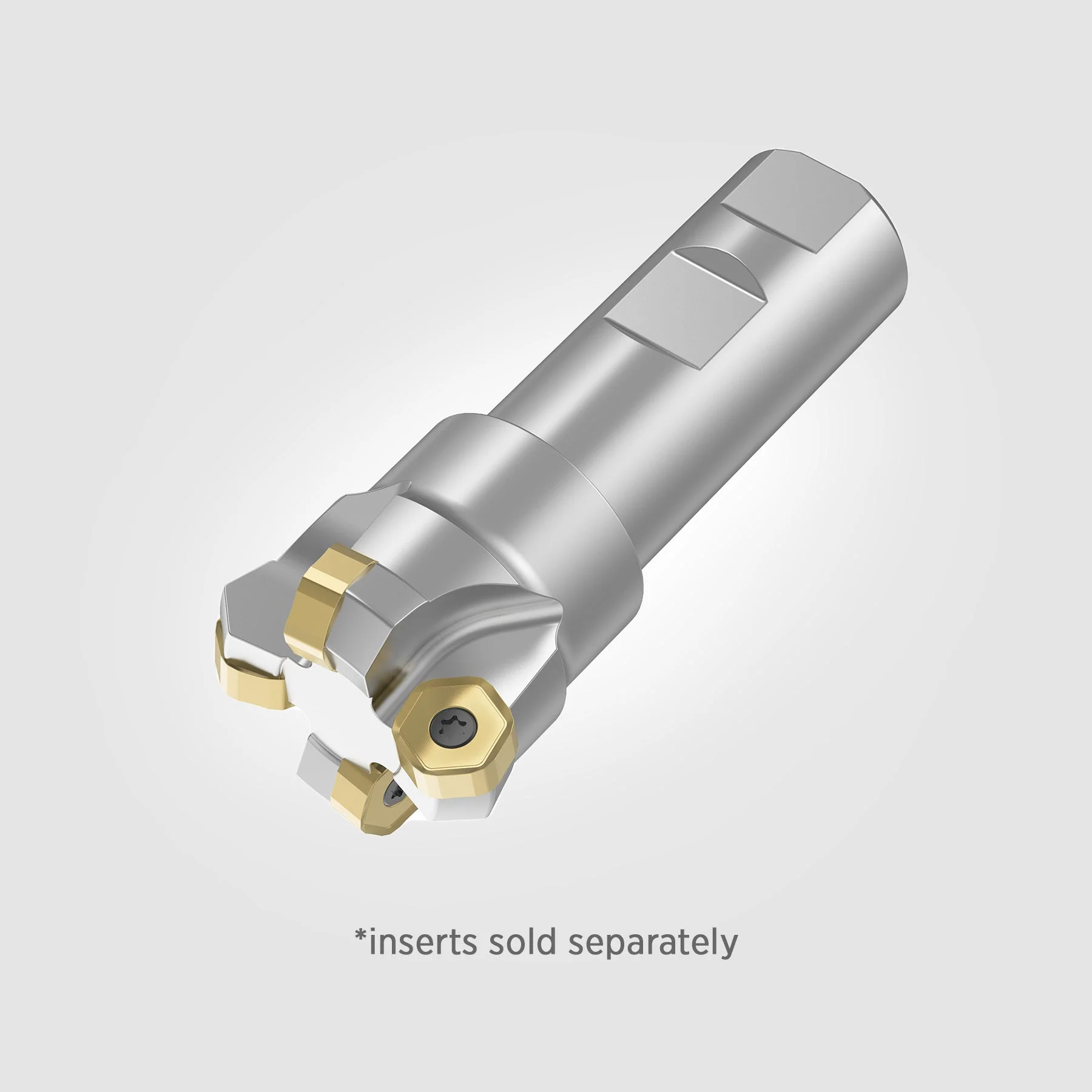

Dodeka Mini 45° Weldon End Mill 1" Dia with 3 Flutes 4130515

Product image 1

Dodeka Mini 45° Weldon End Mill 1" Dia with 3 Flutes 4130515

TITAN's Go-To Indexable End Mill!
  • Twelve cutting edges per insert.
  • Maximum number of teeth per diameter.
  • Productivity booster in all materials.
Applications
  • Chamfer Milling
  • Face Milling
Technical Data
  • Adapter Style: Weldon
  • Through Coolant: Yes
  • Number of Flutes: 3
  • Arbor Diameter (Inch): 0.750"
  • Arbor Diameter (Metric): 19.050mm
  • Effective Cutting Diameter (Inch): 1.000"
  • Effective Cutting Diameter (Metric): 25.400mm
  • Maximum Cutting Diameter (Inch): 1.322"
  • Maximum Cutting Diameter (Metric): 33.580mm"
  • Maximum Cutting Depth (Inch): 0.127"
  • Maximum Cutting Depth (Metric): 3.200mm
  • Overall Length (Inch): 3.280"
  • Overall Length: 83.300mm
  • Max RPM: 19,800

Country of Origin is subject to change.

Safety data sheets upon request.
