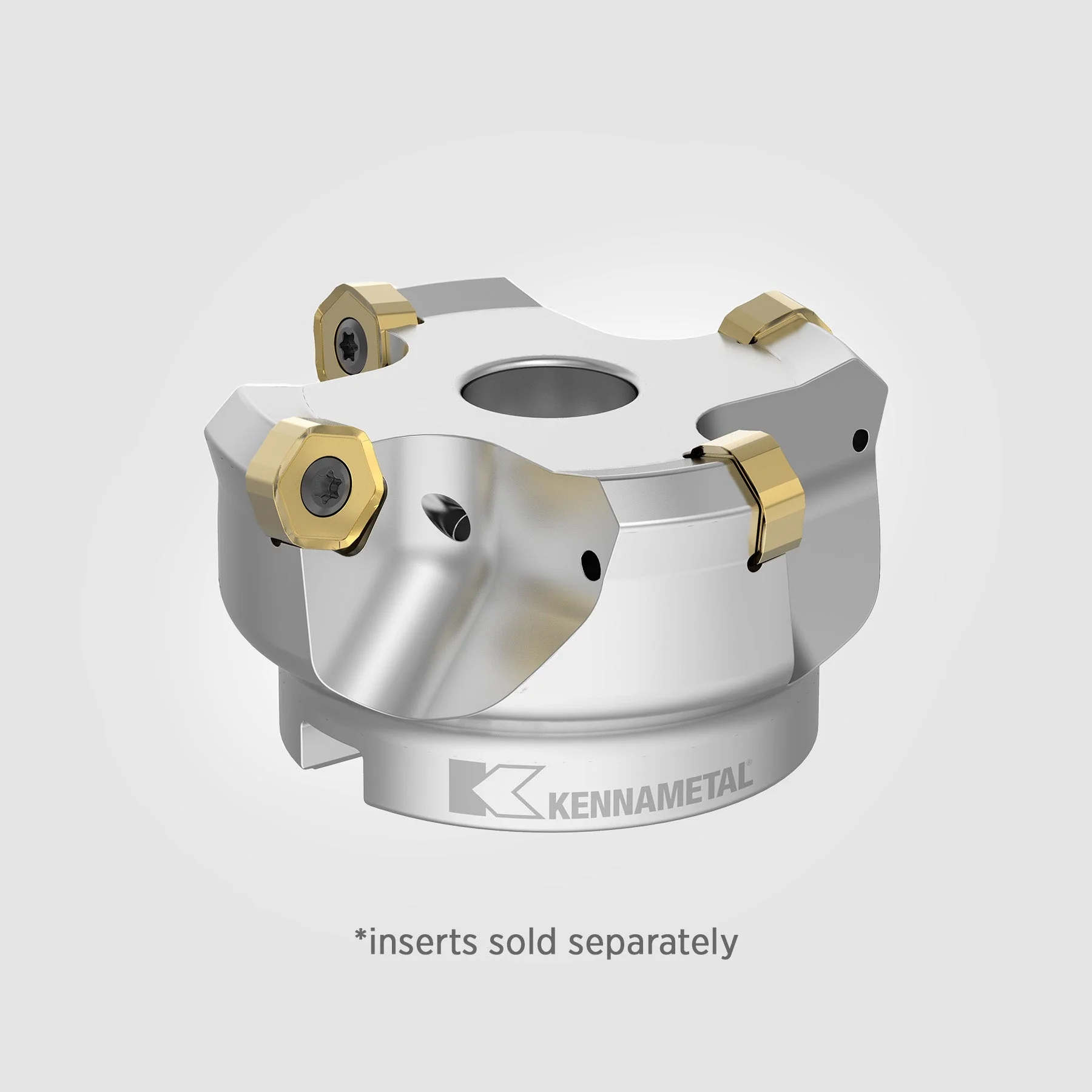

Dodeka Mini 45° Shell Mill 5" Dia with 12 Flutes 4130501
TITAN's Go-To Shell Mill!
- Twelve cutting edges per insert.
- Maximum number of teeth per diameter.
- Productivity booster in all materials.
- Chamfer Milling
- Face Milling
- Adapter Style: A-Socket Head Cap Screw
- Through Coolant: Yes
- Number of Flutes: 12
- Arbor Diameter (Inch): 1.500"
- Arbor Diameter (Metric): 38.100mm
- Effective Cutting Diameter (Inch): 5.000"
- Effective Cutting Diameter (Metric): 127.000mm
- Maximum Cutting Diameter (Inch): 5.320"
- Maximum Cutting Diameter (Metric): 135.140mm"
- Maximum Cutting Depth (Inch): 0.127"
- Maximum Cutting Depth (Metric): 3.230mm
- Overall Length (Inch): 2.380"
- Overall Length: 60.452mm
- Max RPM: 5,000
Country of Origin is subject to change.
Safety data sheets upon request.
$531.20
Original: $1,517.72
-65%Dodeka Mini 45° Shell Mill 5" Dia with 12 Flutes 4130501—
$1,517.72
$531.20Product Information
