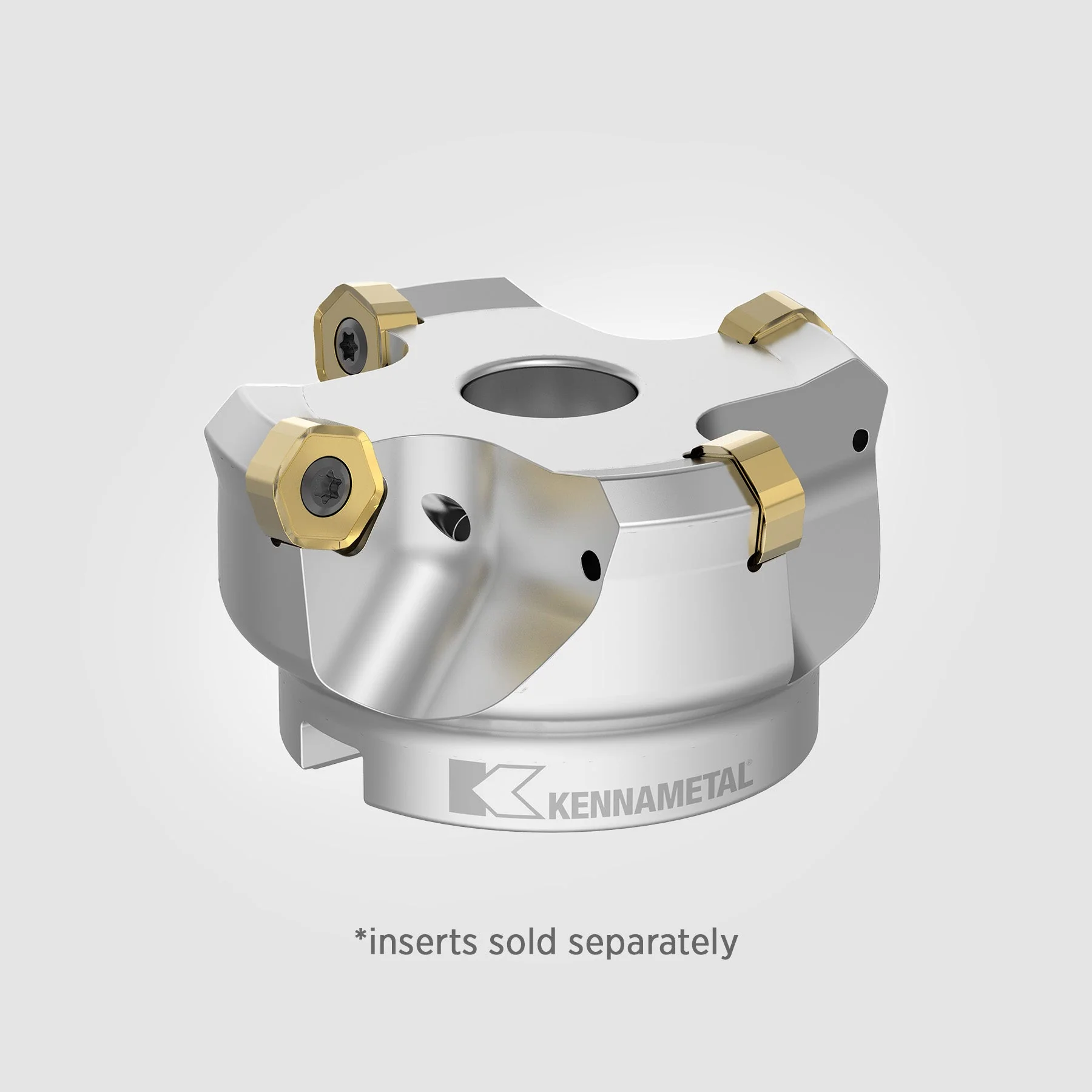

Dodeka Mini 45° Shell Mill 3" Dia with 10 Flutes 4130496
TITAN's Go-To Shell Mill!
- Twelve cutting edges per insert.
- Maximum number of teeth per diameter.
- Productivity booster in all materials.
- Chamfer Milling
- Face Milling
- Adapter Style: A-Socket Head Cap Screw
- Through Coolant: Yes
- Number of Flutes: 10
- Arbor Diameter (Inch): 1.000"
- Arbor Diameter (Metric): 25.400mm
- Effective Cutting Diameter (Inch): 3.000"
- Effective Cutting Diameter (Metric): 76.200mm
- Maximum Cutting Diameter (Inch): 3.321"
- Maximum Cutting Diameter (Metric): 84.348mm"
- Maximum Cutting Depth (Inch): 0.127"
- Maximum Cutting Depth (Metric): 3.230mm
- Overall Length (Inch): 1.750"
- Overall Length: 44.450mm
- Max RPM: 8,300
Country of Origin is subject to change.
Safety data sheets upon request.
$446.75
Original: $1,276.43
-65%Dodeka Mini 45° Shell Mill 3" Dia with 10 Flutes 4130496—
$1,276.43
$446.75Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
TITAN's Go-To Shell Mill!
- Twelve cutting edges per insert.
- Maximum number of teeth per diameter.
- Productivity booster in all materials.
- Chamfer Milling
- Face Milling
- Adapter Style: A-Socket Head Cap Screw
- Through Coolant: Yes
- Number of Flutes: 10
- Arbor Diameter (Inch): 1.000"
- Arbor Diameter (Metric): 25.400mm
- Effective Cutting Diameter (Inch): 3.000"
- Effective Cutting Diameter (Metric): 76.200mm
- Maximum Cutting Diameter (Inch): 3.321"
- Maximum Cutting Diameter (Metric): 84.348mm"
- Maximum Cutting Depth (Inch): 0.127"
- Maximum Cutting Depth (Metric): 3.230mm
- Overall Length (Inch): 1.750"
- Overall Length: 44.450mm
- Max RPM: 8,300
Country of Origin is subject to change.
Safety data sheets upon request.
