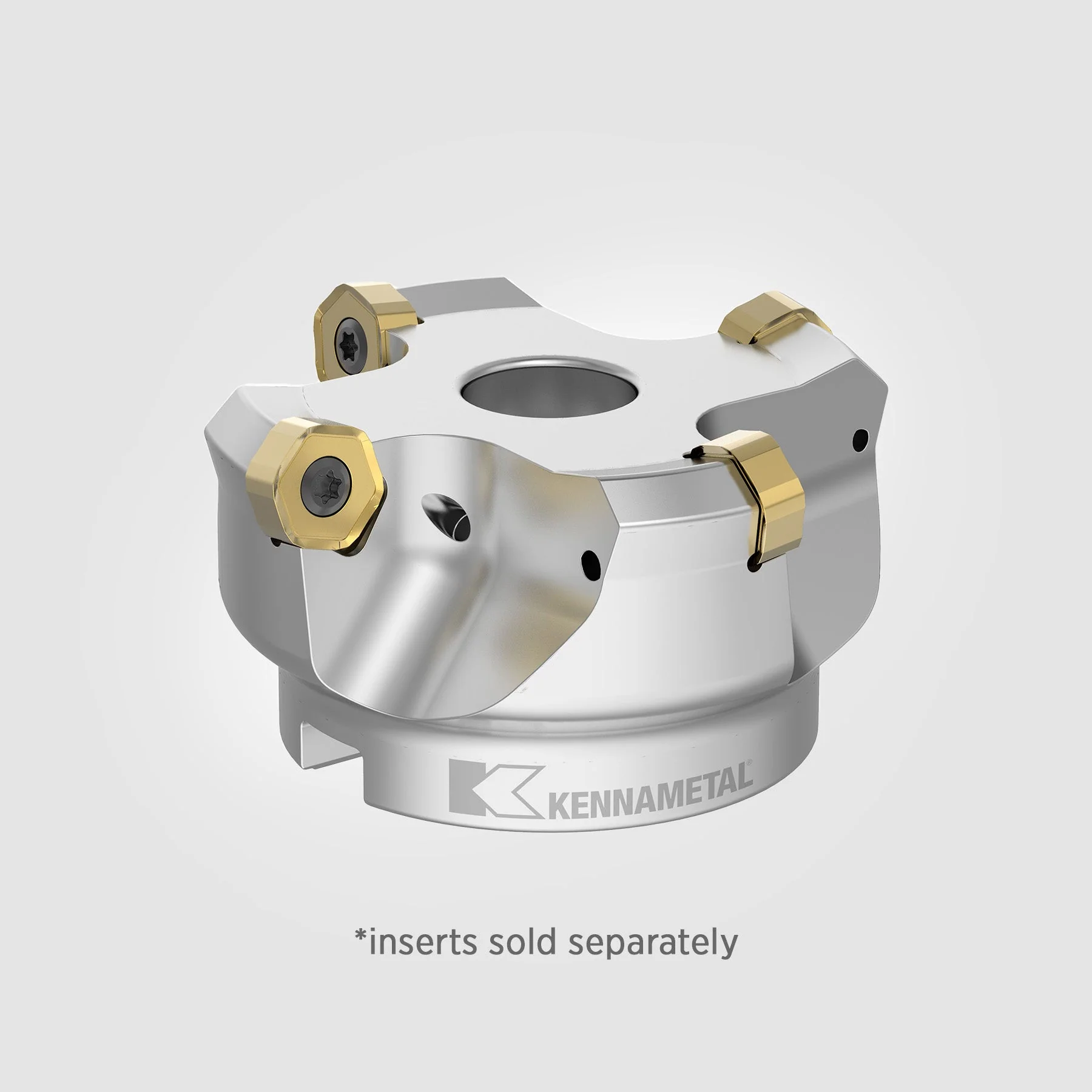

TITAN's Go-To Shell Mill!

• Twelve cutting edges per insert.
• Maximum number of teeth per diameter.
• Productivity booster in all materials.

Applications

• Chamfer Milling
• Face Milling

Technical Data

• Adapter Style: A-Socket Head Cap Screw
• Through Coolant: Yes
• Number of Flutes: 5
• Arbor Diameter (Inch): 1.000"
• Arbor Diameter (Metric): 25.400mm
• Effective Cutting Diameter (Inch): 3.000"
• Effective Cutting Diameter (Metric): 76.200mm
• Maximum Cutting Diameter (Inch): 3.321"
• Maximum Cutting Diameter (Metric): 84.348mm"
• Maximum Cutting Depth (Inch): 0.127"
• Maximum Cutting Depth (Metric): 3.230mm
• Overall Length (Inch): 1.750"
• Overall Length: 44.450mm
• Max RPM: 8,300

Country of Origin is subject to change.

Safety data sheets upon request.
