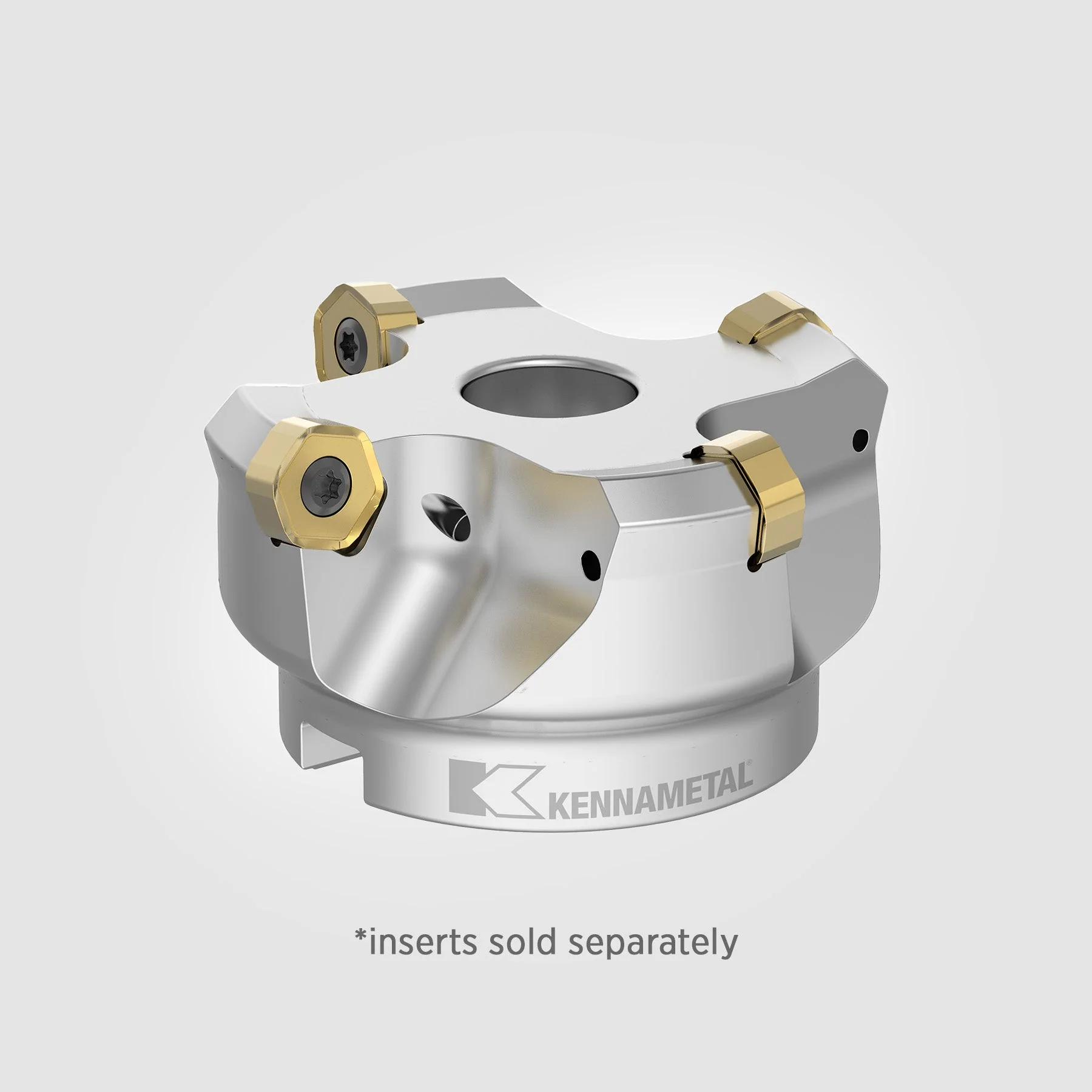

Dodeka Mini 45° Shell Mill 2.5" Dia with 6 Flutes 4130432

Product image 1

Dodeka Mini 45° Shell Mill 2.5" Dia with 6 Flutes 4130432

TITAN's Go-To Shell Mill!
  • Twelve cutting edges per insert.
  • Maximum number of teeth per diameter.
  • Productivity booster in all materials.
Applications
  • Chamfer Milling
  • Face Milling
Technical Data
  • Adapter Style: A-Socket Head Cap Screw
  • Through Coolant: Yes
  • Number of Flutes: 6
  • Arbor Diameter (Inch): 0.750"
  • Arbor Diameter (Metric): 19.050mm
  • Effective Cutting Diameter (Inch): 2.500"
  • Effective Cutting Diameter (Metric): 63.500mm
  • Maximum Cutting Diameter (Inch): 2.821"
  • Maximum Cutting Diameter (Metric): 71.653mm"
  • Maximum Cutting Depth (Inch): 0.127"
  • Maximum Cutting Depth (Metric): 3.230mm
  • Overall Length (Inch): 1.575"
  • Overall Length: 40.000mm
  • Max RPM: 10,000

Country of Origin is subject to change.

Safety data sheets upon request.

$951.20
Dodeka Mini 45° Shell Mill 2.5" Dia with 6 Flutes 4130432—
$951.20

Product Information

Shipping & Returns

Description

TITAN's Go-To Shell Mill!
  • Twelve cutting edges per insert.
  • Maximum number of teeth per diameter.
  • Productivity booster in all materials.
Applications
  • Chamfer Milling
  • Face Milling
Technical Data
  • Adapter Style: A-Socket Head Cap Screw
  • Through Coolant: Yes
  • Number of Flutes: 6
  • Arbor Diameter (Inch): 0.750"
  • Arbor Diameter (Metric): 19.050mm
  • Effective Cutting Diameter (Inch): 2.500"
  • Effective Cutting Diameter (Metric): 63.500mm
  • Maximum Cutting Diameter (Inch): 2.821"
  • Maximum Cutting Diameter (Metric): 71.653mm"
  • Maximum Cutting Depth (Inch): 0.127"
  • Maximum Cutting Depth (Metric): 3.230mm
  • Overall Length (Inch): 1.575"
  • Overall Length: 40.000mm
  • Max RPM: 10,000

Country of Origin is subject to change.

Safety data sheets upon request.
