Dodeka 45° End Mill 32mm Dia with 3 Flutes 4126383

Product image 1

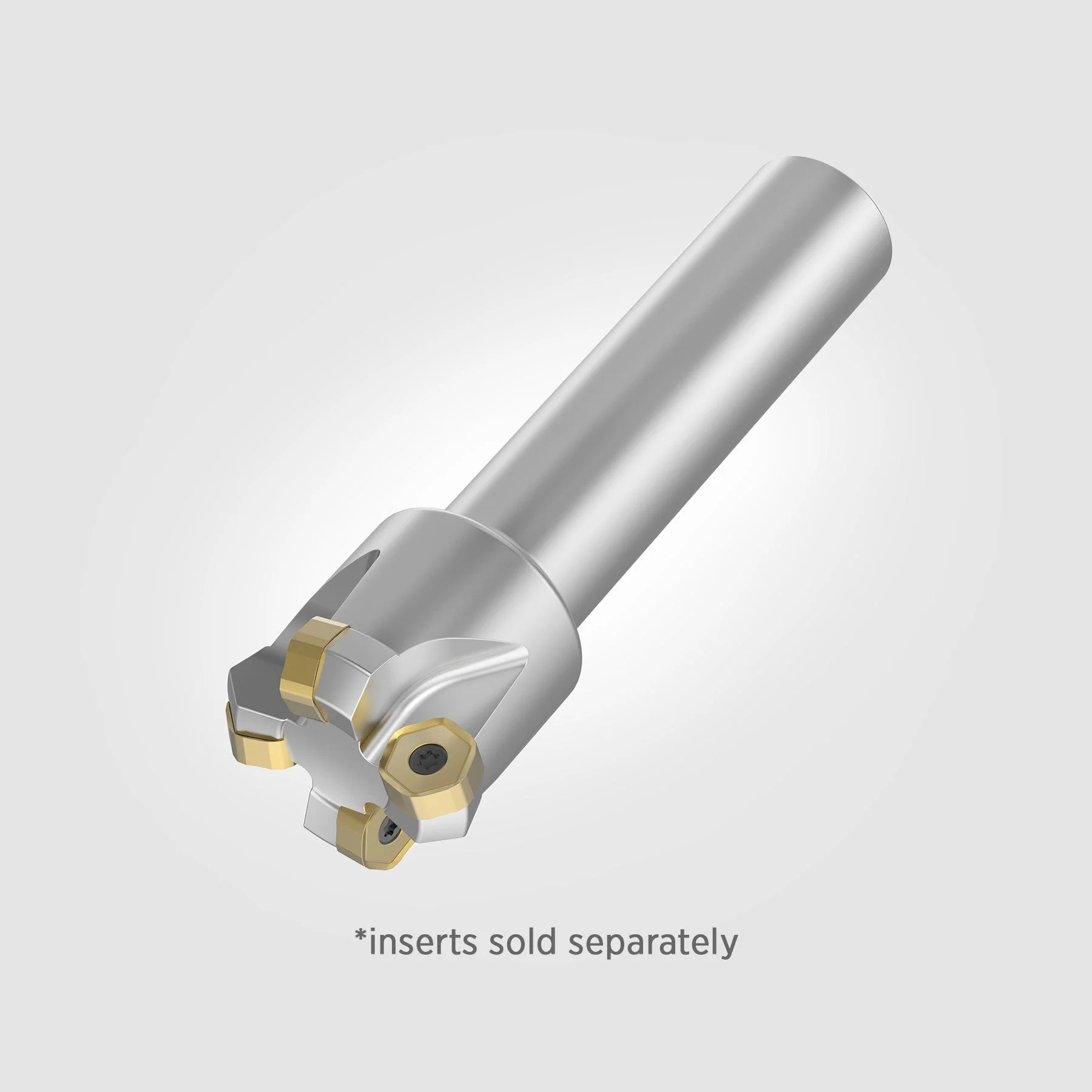

Dodeka 45° End Mill 32mm Dia with 3 Flutes 4126383

TITAN's Go-To Indexable End Mill!
  • Twelve cutting edges per insert.
  • Maximum number of teeth per diameter.
  • Productivity booster in all materials.
Applications
  • Chamfer Milling
  • Face Milling
Technical Data
  • Adapter Style: Straight-Cylindrical
  • Through Coolant: Yes
  • Number of Flutes: 3
  • Arbor Diameter (Inch): 0.9843"
  • Arbor Diameter (Metric): 25.000mm
  • Effective Cutting Diameter (Inch): 1.260"
  • Effective Cutting Diameter (Metric): 32.000mm
  • Maximum Cutting Diameter (Inch): 1.582"
  • Maximum Cutting Diameter (Metric): 40.173mm"
  • Maximum Cutting Depth (Inch): 0.127"
  • Maximum Cutting Depth (Metric): 3.230mm
  • Overall Length (Inch): 5.118"
  • Overall Length: 130.000mm
  • Max RPM: 17,600

Country of Origin is subject to change.

Safety data sheets upon request.

$198.28

Original: $566.51

-65%
Dodeka 45° End Mill 32mm Dia with 3 Flutes 4126383—

$566.51

$198.28

Product Information

Shipping & Returns

Description

TITAN's Go-To Indexable End Mill!
  • Twelve cutting edges per insert.
  • Maximum number of teeth per diameter.
  • Productivity booster in all materials.
Applications
  • Chamfer Milling
  • Face Milling
Technical Data
  • Adapter Style: Straight-Cylindrical
  • Through Coolant: Yes
  • Number of Flutes: 3
  • Arbor Diameter (Inch): 0.9843"
  • Arbor Diameter (Metric): 25.000mm
  • Effective Cutting Diameter (Inch): 1.260"
  • Effective Cutting Diameter (Metric): 32.000mm
  • Maximum Cutting Diameter (Inch): 1.582"
  • Maximum Cutting Diameter (Metric): 40.173mm"
  • Maximum Cutting Depth (Inch): 0.127"
  • Maximum Cutting Depth (Metric): 3.230mm
  • Overall Length (Inch): 5.118"
  • Overall Length: 130.000mm
  • Max RPM: 17,600

Country of Origin is subject to change.

Safety data sheets upon request.
