• Specially designed for machining pockets and profiles in aluminum and aluminum alloys
• Internal coolant enables better chip evacuation and higher feed rates
• Reinforced pockets for increased tool life and productivity
• Maximum stability in high-speed applications

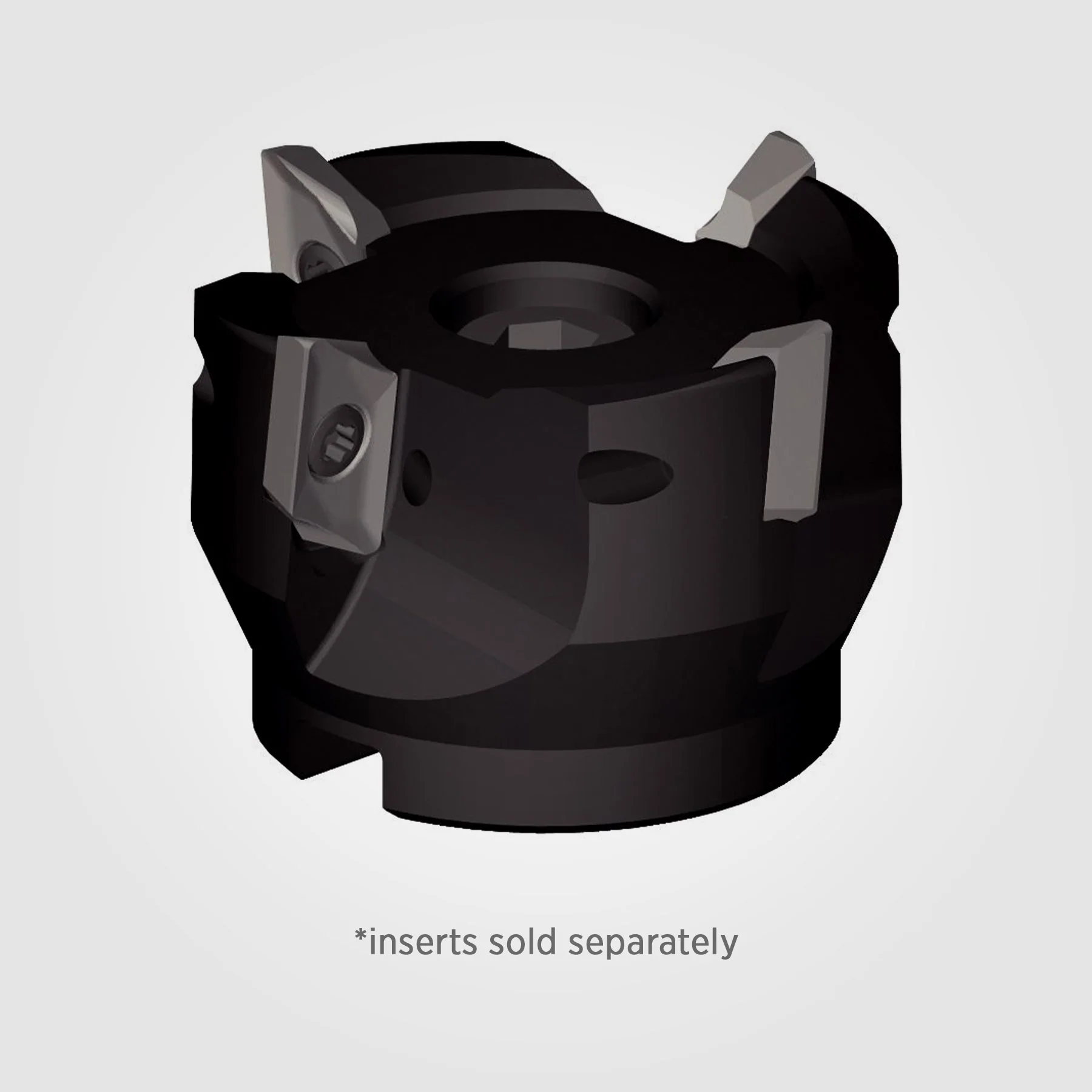

• Replacement Shell Mill for the BUILDING BLOCKS MILL Tool Kit

Materials

• Non-Ferrous Materials, Cast Iron

Technical Data

• Featured Tooling in the Academy Tool Kit
• Series: 5720VZ16
• Number of Flutes: 4
• Insert* Compatibility: ZDET16M5 Series
• Adapter Style: A-Socket Head Cap Screw
• Effective Cutting Diameter: 3.000"
• Arbor Diameter: 1.000"
• Length of Cut: 0.630"
• Overall Length: 1.969"
• Maximum Ramp Angle: 4.6°
• Through Coolant: Yes
• Maximum RPM: 23,000

*INSERTS SOLD SEPARATELY

Country of Origin is subject to change.

Safety data sheets upon request.
