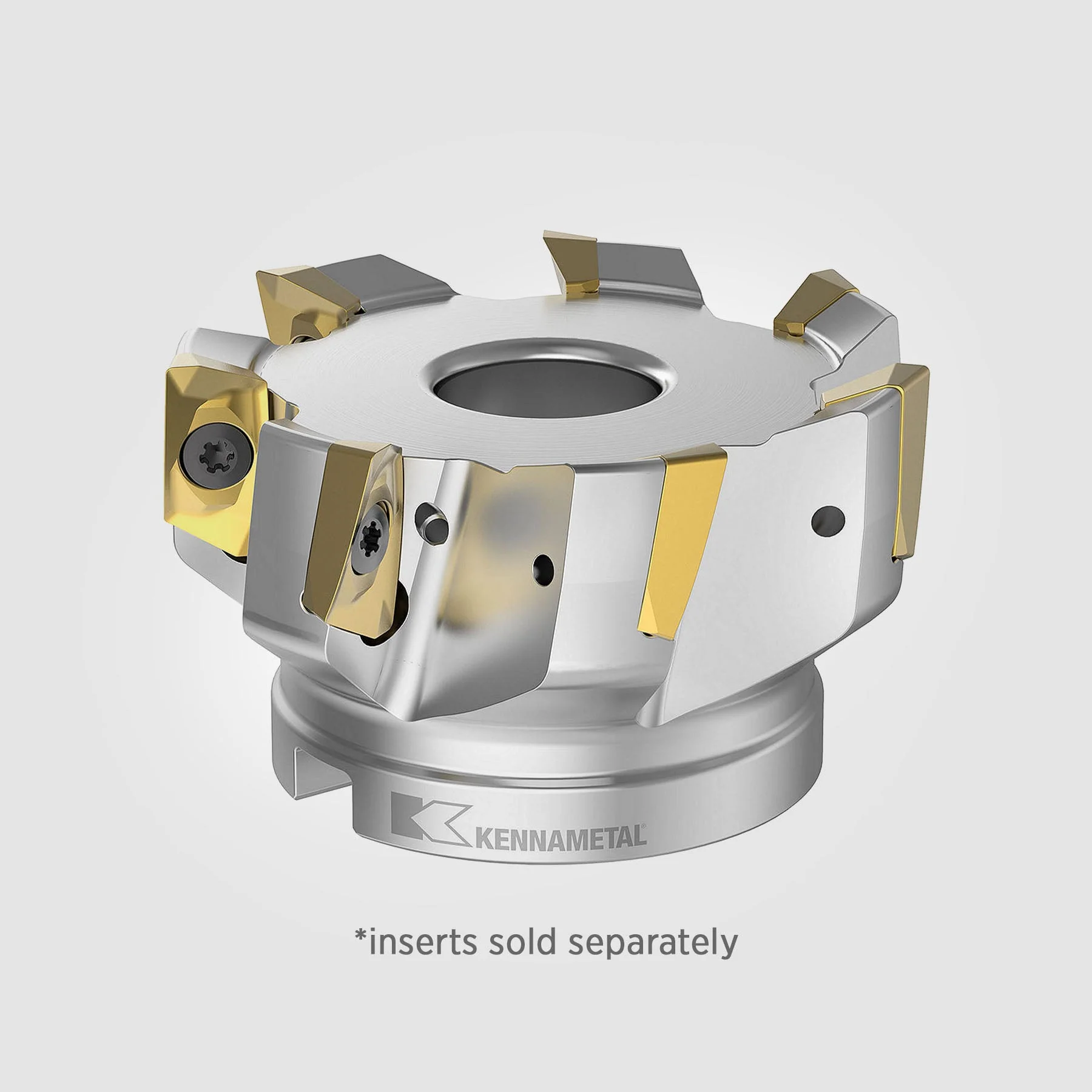

• Versatile shell mill for slotting, profiling, ramping, helical interpretation, and plunging
• Insert geometries and grades for most workpiece materials
• Generates superior surface finish
• High RPM capabilities
• Replacement Shell Mill for the Building Blocks Tool Kit

Technical Data

• Adapter Style: A-Socket Head Cap Screw
• Number of Inserts: 5
• [D] Adapter Diameter (Inch): 1.000"
• [D] Adapter Diameter (Metric): 25.410mm
• [D1] Effective Cutting Diameter (Inch): 3.000"
• [D1] Effective Cutting Diameter (Metric): 76.200mm
• [D6] Hub Diameter (Inch): 2.188"
• [D6] Hub Diameter (Metric): 55.560mm
• [AP1MAX] Maximum Cut Depth (Inch): 0.690"
• [AP1MAX] Maximum Cut Depth (Metric): 17.500mm
• [L] Overall Length (Inch): 1.750"
• [L] Overall Length (Metric): 44.500mm
• Maximum Ramping Angle: 3.000°
• Maximum RPM: 19,780
